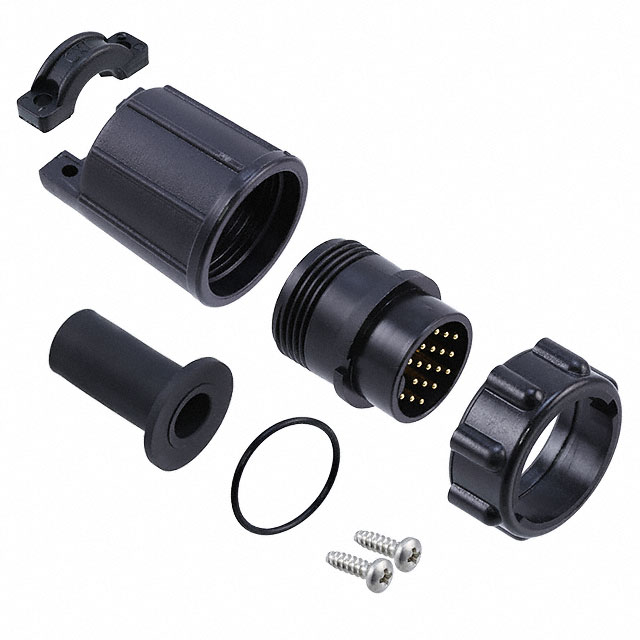

13282-18PG-326
ActiveConxall/Switchcraft
CONN PLUG MALE 18P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
13282-18PG-326
ActiveConxall/Switchcraft
CONN PLUG MALE 18P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 13282-18PG-326 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [diameter] | 7.62 mm |
| Cable Opening [Max] [diameter] | 0.3 in |
| Cable Opening [Min] [diameter] | 0.26 in |
| Cable Opening [Min] [diameter] | 6.6 mm |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Features | Cable Clamp, Backshell |
| Ingress Protection | Weathertight |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 18 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.47 | |
| 10 | $ 25.85 | |||
| 25 | $ 23.43 | |||
| 50 | $ 21.80 | |||
| 100 | $ 20.31 | |||
| 250 | $ 18.57 | |||
| 500 | $ 17.40 | |||
Description
General part information
13282-18P Series
18 Position Circular Connector Plug, Male Pins Solder Cup
