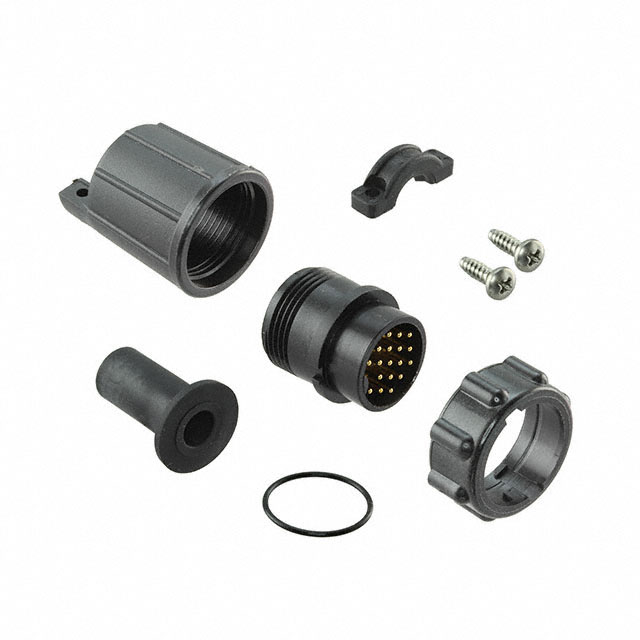

13282-18PG-321

Active

Conxall/Switchcraft

CONN PLUG MALE 18P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 18P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Voltage Rating	Ingress Protection	Contact Material	Number of Positions	Orientation	Color	Mounting Type	Backshell Material, Plating	Fastening Type	Shielding	Features	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 13282-18PG-321	-40 °C	115 °C	Male Pins Plug	Gold	600 V	Weathertight	Brass	18	Keyed	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	Backshell Cable Clamp	Plastic	0.21 in	5.33 mm	6.35 mm	0.25 in
Conxall/Switchcraft 13282-18PG-326	-40 °C	115 °C	Male Pins Plug	Gold	600 V	Weathertight	Brass	18	Keyed	Black	Free Hanging (In-Line)	Nylon Polyamide (PA)	Bayonet Lock	Unshielded	Backshell Cable Clamp	Plastic					0.26 in	7.62 mm	0.3 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Position Circular Connector Plug, Male Pins Solder Cup
