UVY1V682MHD

Active

NICHICON

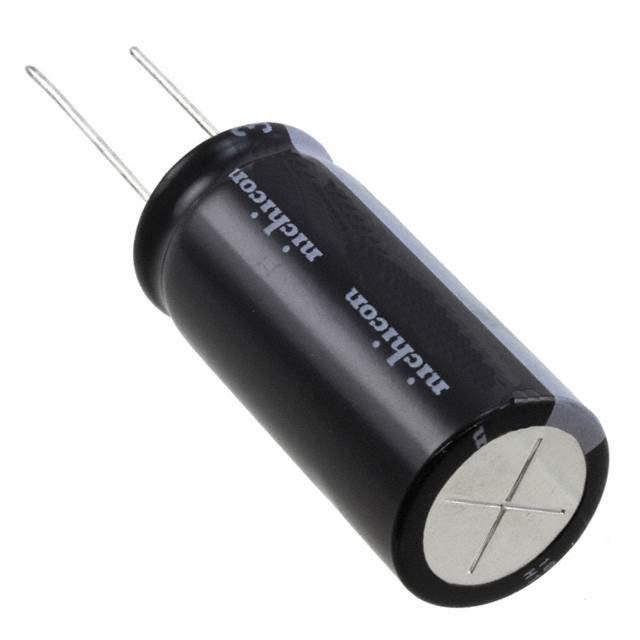

CAP ALUM 6800UF 20% 35V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1V682MHD

Active

NICHICON

CAP ALUM 6800UF 20% 35V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY1V682MHD

Applications	General Purpose
Capacitance	6800 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.3 A
Ripple Current @ Low Frequency	2 A
Size / Dimension [diameter]	0.709 "
Size / Dimension [diameter]	18 mm
Tolerance	20 %
Voltage - Rated	35 V

UVY1V Series

Part	Capacitance	Package / Case	Applications	Mounting Type	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Polarization	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
NICHICON UVY1V471MPD1TD	470 µF	Radial Can	General Purpose	Through Hole	690 mA	5 mm	0.197 in	460 mA	0.689 in	17.5 mm	20 %	Polar	2000 Hrs	10 mm	0.394 in	35 V	105 ░C	-55 °C
NICHICON UVY1V470MDD	47 µF	Radial Can	General Purpose	Through Hole	186 mA	2 mm	0.079 in	93 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	5 mm	0.197 "	35 V	105 ░C	-55 °C
NICHICON UVY1V102MHD	1000 µF	Radial Can	General Purpose	Through Hole	931.5 mA	5 mm	0.197 in	810 mA			20 %	Polar	2000 Hrs	12.5 mm	0.492 in	35 V	105 ░C	-55 °C	22 mm	0.866 in
NICHICON UVY1V470MDD1TD	47 µF	Radial Can	General Purpose	Through Hole	186 mA	2 mm	0.079 in	93 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	5 mm	0.197 "	35 V	105 ░C	-55 °C
NICHICON UVY1V101MED1TA	100 µF	Radial Can	General Purpose	Through Hole	225 mA	2.5 mm	0.098 in	150 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	6.3 mm	0.248 in	35 V	105 ░C	-55 °C
NICHICON UVY1V472MHD	4700 µF	Radial Can	General Purpose	Through Hole	2.047 A	7.5 mm	0.295 in	1.78 A			20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	37.5 mm	1.476 in
NICHICON UVY1V682MHD	6800 µF	Radial Can	General Purpose	Through Hole	2.3 A	7.5 mm	0.295 in	2 A	1.654 in	42 mm	20 %	Polar	2000 Hrs	18 mm	0.709 "	35 V	105 ░C	-55 °C
NICHICON UVY1V331MPD1TD	330 µF	Radial Can	General Purpose	Through Hole	525 mA	5 mm	0.197 in	350 mA	0.551 "		20 %	Polar	2000 Hrs	10 mm	0.394 in	35 V	105 ░C	-55 °C			14 mm
NICHICON UVY1V222MHD	2200 µF	Radial Can	General Purpose	Through Hole	1.449 A	7.5 mm	0.295 in				20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	27 mm	1.063 in
NICHICON UVY1V332MHD	3.3 mF	Radial Can	General Purpose	Through Hole	1.725 A	7.5 mm	0.295 in	1.5 A			20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	32.5 mm	1.28 in
