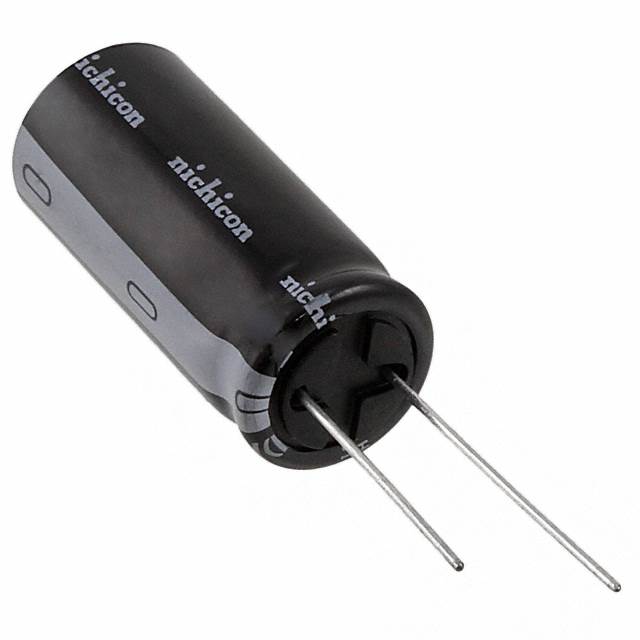

UVY1V472MHD

Active

NICHICON

CAP ALUM 4700UF 20% 35V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1V472MHD

Active

NICHICON

CAP ALUM 4700UF 20% 35V RADIAL

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY1V472MHD

Applications	General Purpose
Capacitance	4700 µF
Height - Seated (Max) [Max] [z]	37.5 mm
Height - Seated (Max) [Max] [z]	1.476 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.047 A
Ripple Current @ Low Frequency	1.78 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	35 V

UVY1V Series

Part	Capacitance	Package / Case	Applications	Mounting Type	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Polarization	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
NICHICON UVY1V471MPD1TD	470 µF	Radial Can	General Purpose	Through Hole	690 mA	5 mm	0.197 in	460 mA	0.689 in	17.5 mm	20 %	Polar	2000 Hrs	10 mm	0.394 in	35 V	105 ░C	-55 °C
NICHICON UVY1V470MDD	47 µF	Radial Can	General Purpose	Through Hole	186 mA	2 mm	0.079 in	93 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	5 mm	0.197 "	35 V	105 ░C	-55 °C
NICHICON UVY1V102MHD	1000 µF	Radial Can	General Purpose	Through Hole	931.5 mA	5 mm	0.197 in	810 mA			20 %	Polar	2000 Hrs	12.5 mm	0.492 in	35 V	105 ░C	-55 °C	22 mm	0.866 in
NICHICON UVY1V470MDD1TD	47 µF	Radial Can	General Purpose	Through Hole	186 mA	2 mm	0.079 in	93 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	5 mm	0.197 "	35 V	105 ░C	-55 °C
NICHICON UVY1V101MED1TA	100 µF	Radial Can	General Purpose	Through Hole	225 mA	2.5 mm	0.098 in	150 mA	0.492 in	12.5 mm	20 %	Polar	1000 Hrs	6.3 mm	0.248 in	35 V	105 ░C	-55 °C
NICHICON UVY1V472MHD	4700 µF	Radial Can	General Purpose	Through Hole	2.047 A	7.5 mm	0.295 in	1.78 A			20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	37.5 mm	1.476 in
NICHICON UVY1V682MHD	6800 µF	Radial Can	General Purpose	Through Hole	2.3 A	7.5 mm	0.295 in	2 A	1.654 in	42 mm	20 %	Polar	2000 Hrs	18 mm	0.709 "	35 V	105 ░C	-55 °C
NICHICON UVY1V331MPD1TD	330 µF	Radial Can	General Purpose	Through Hole	525 mA	5 mm	0.197 in	350 mA	0.551 "		20 %	Polar	2000 Hrs	10 mm	0.394 in	35 V	105 ░C	-55 °C			14 mm
NICHICON UVY1V222MHD	2200 µF	Radial Can	General Purpose	Through Hole	1.449 A	7.5 mm	0.295 in				20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	27 mm	1.063 in
NICHICON UVY1V332MHD	3.3 mF	Radial Can	General Purpose	Through Hole	1.725 A	7.5 mm	0.295 in	1.5 A			20 %	Polar	2000 Hrs	16 mm	0.63 in	35 V	105 ░C	-55 °C	32.5 mm	1.28 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.04
		10	$ 1.99
		50	$ 1.57
		100	$ 1.44
		500	$ 1.21
		1000	$ 1.14
		2500	$ 1.06
		5000	$ 1.02
Newark	Each	100	$ 1.51
		500	$ 1.37
		1000	$ 1.19
		2500	$ 1.06

Description

General part information

UVY1V Series

4700 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
