19432100340

Active

HARTING Technology Group

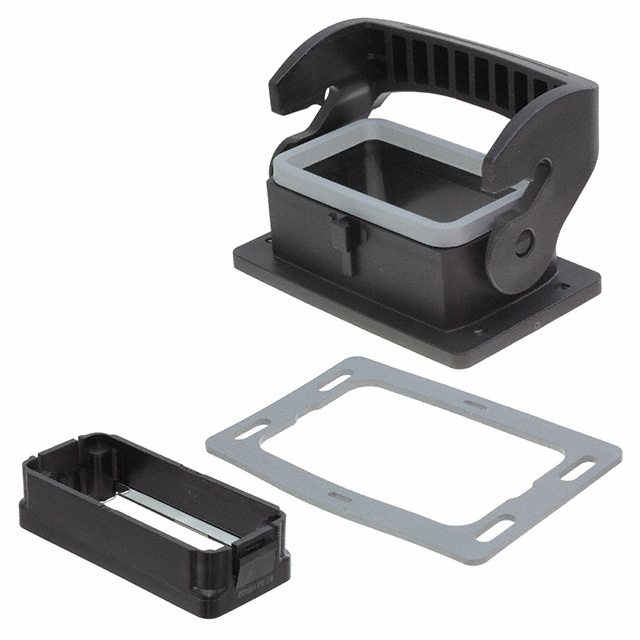

HEAVY DUTY HOUSING, 10B, 1LEVER/BULKHEAD

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY HOUSING, 10B, 1LEVER/BULKHEAD

Technical Specifications

Parameters and characteristics for this part

Specification	19432100340

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	94 mm
Size / Dimension [x]	3.701 "
Size / Dimension [y]	60 mm
Size / Dimension [y]	2.362 in
Size / Dimension [z]	1.421 "
Size / Dimension [z]	36.1 mm
Style	Bottom Entry

Part	Housing Material	Style	Lock Location	Ingress Protection	Size	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Features
HARTING Technology Group 19432100251	Polyamide (PA) Nylon Glass Filled	Side Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Box Mount	125 °C	-40 °C	3.819 in	97 mm	2.559 in	88 mm	3.465 "	65 mm	M25
HARTING Technology Group 19432100341	Polyamide (PA) Nylon Glass Filled	Bottom Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Panel Mount	125 °C	-40 °C	3.701 "	94 mm	2.362 in	36.1 mm	1.421 "	60 mm		Cover
HARTING Technology Group 19432100340	Polyamide (PA) Nylon Glass Filled	Bottom Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Panel Mount	125 °C	-40 °C	3.701 "	94 mm	2.362 in	36.1 mm	1.421 "	60 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP66 - Dust Tight, Water Resistant
