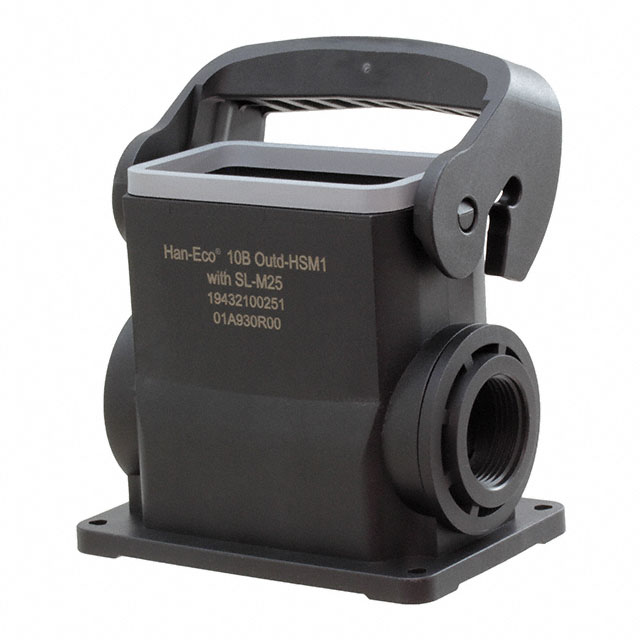

19432100251

LTB

HARTING Technology Group

HAN-ECO 10B SURFACE MOUNT HOUSIN

Search across all available documentation for this part.

LTB

HARTING Technology Group

HAN-ECO 10B SURFACE MOUNT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Specification	19432100251

Connector Type	Base - Box Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	3.819 in
Size / Dimension [x]	97 mm
Size / Dimension [y]	2.559 in
Size / Dimension [y]	65 mm
Size / Dimension [z]	88 mm
Size / Dimension [z]	3.465 "
Style	Side Entry
Thread Size	M25

Part	Housing Material	Style	Lock Location	Ingress Protection	Size	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Features
HARTING Technology Group 19432100251	Polyamide (PA) Nylon Glass Filled	Side Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Box Mount	125 °C	-40 °C	3.819 in	97 mm	2.559 in	88 mm	3.465 "	65 mm	M25
HARTING Technology Group 19432100341	Polyamide (PA) Nylon Glass Filled	Bottom Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Panel Mount	125 °C	-40 °C	3.701 "	94 mm	2.362 in	36.1 mm	1.421 "	60 mm		Cover
HARTING Technology Group 19432100340	Polyamide (PA) Nylon Glass Filled	Bottom Entry	Locking Clip (1) on Base Bottom	IP66	10B	Black	Base - Panel Mount	125 °C	-40 °C	3.701 "	94 mm	2.362 in	36.1 mm	1.421 "	60 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 10B IP66 - Dust Tight, Water Resistant
