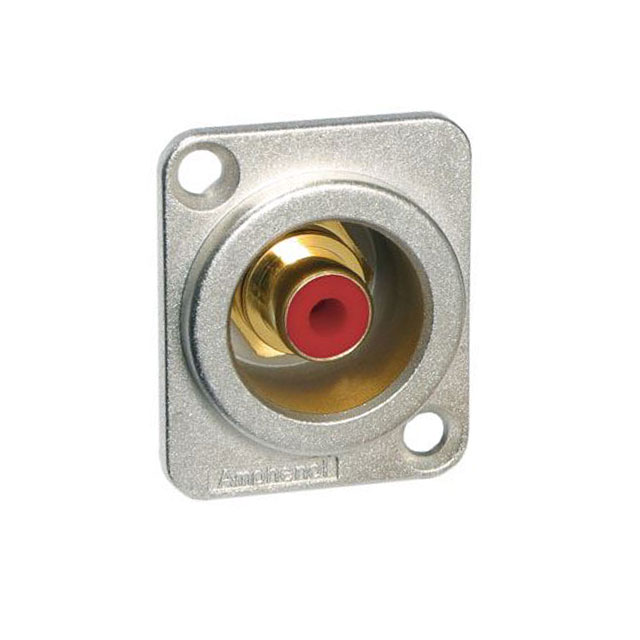

ACJD-RED
ActiveAMPHENOL AUDIO
CONN RCA JACK CHASIS MOUNT RED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACJD-RED
ActiveAMPHENOL AUDIO
CONN RCA JACK CHASIS MOUNT RED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACJD-RED |
|---|---|
| Connector Type | Phone Jack |
| Contact Material - Plating [custom] | Gold |
| Gender | Female |
| Housing Material | Zinc Alloy |
| Insulation Color | Red |
| Internal Switch(s) | False |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -25 °C |
| Panel Hole Size [diameter] | 24 mm |
| Panel Hole Size [diameter] | 0.945 in |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder, Solder Cup |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.38 | |
| 10 | $ 5.42 | |||
| 25 | $ 5.08 | |||
| 50 | $ 4.84 | |||
| 100 | $ 4.61 | |||
| 250 | $ 4.32 | |||
| 500 | $ 4.11 | |||
| 1000 | $ 3.92 | |||
| 2500 | $ 3.67 | |||
Description
General part information
ACJD Series
Phone Jack Mono Connector Solder Cup, Solder
