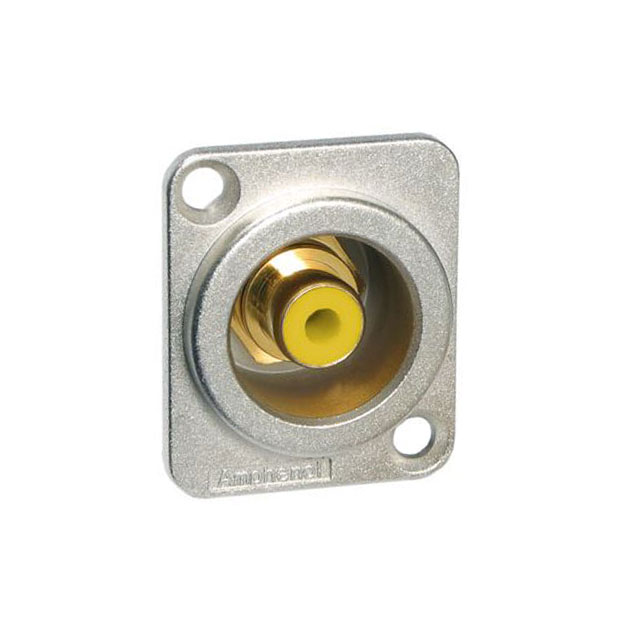

ACJD-YEL

Active

AMPHENOL AUDIO

CONN RCA JACK CHASIS MOUNT YELLW

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCA JACK CHASIS MOUNT YELLW

Technical Specifications

Parameters and characteristics for this part

Specification	ACJD-YEL

Connector Type	Phone Jack
Contact Material - Plating [custom]	Gold
Gender	Female
Housing Material	Zinc Alloy
Insulation Color	Yellow
Internal Switch(s)	False
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Panel Hole Size [diameter]	24 mm
Panel Hole Size [diameter]	0.945 in
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder, Solder Cup

Part	Contact Material - Plating [custom]	Signal Lines	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Connector Type	Insulation Color	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Gender	Termination	Housing Material
AMPHENOL AUDIO ACJD-YEL	Gold	Mono	Unshielded	-25 °C	75 ░C	2	2	Phone Jack	Yellow	24 mm	0.945 in	Female	Solder Solder Cup	Zinc Alloy
AMPHENOL AUDIO ACJD-RED	Gold	Mono	Unshielded	-25 °C	75 ░C	2	2	Phone Jack	Red	24 mm	0.945 in	Female	Solder Solder Cup	Zinc Alloy
AMPHENOL AUDIO ACJD-WHT	Gold	Mono	Unshielded	-25 °C	75 ░C	2	2	Phone Jack	White	24 mm	0.945 in	Female	Solder Solder Cup	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phone Jack Mono Connector Solder Cup, Solder
