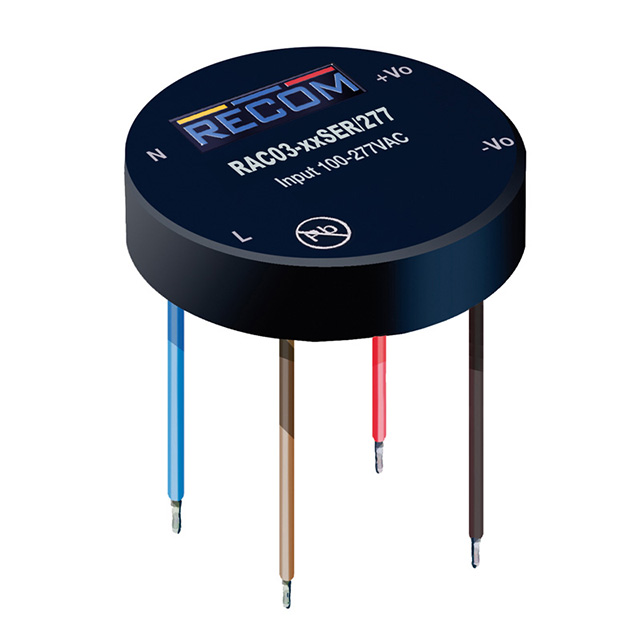

RAC03-24SER/277-TRAY

Active

RECOM Power

AC/DC POWER MODULES 3W 85-305VIN 24VOUT 125MA ROUND/ WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RAC03-24SER/277-TRAY

Active

RECOM Power

AC/DC POWER MODULES 3W 85-305VIN 24VOUT 125MA ROUND/ WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC03-24SER/277-TRAY

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus
Current - Output 1	125 mA
Efficiency	76 %
Features	Universal Input, DC Input Capable
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	3 W
Size / Dimension [x]	50.3 mm
Size / Dimension [x]	1.98 in
Size / Dimension [y]	50.3 mm
Size / Dimension [y]	1.98 in
Size / Dimension [z]	0.43 "
Size / Dimension [z]	11 mm
Type	Enclosed
Voltage - Input [Max]	305 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

RAC03-SER/277 Series

AC/DC Power Modules 3W 85-305Vin 5Vout 600mA Round/ Wire

Part	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Applications	Weight	Weight	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Package / Case	Number of Outputs	Type	Load Regulation	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 1	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Isolation	Standard Number	Size / Dimension [x]	Size / Dimension [z]
RECOM Power RAC03-3.3SGA	85 VAC	305 VAC	3 W	3.3 V	CE cURus	910 mA	Household Appliances ITE (Commercial)	0.044 lb	19.96 g	70 %	85 °C	-40 °C	0.5 %	16-DIP Module 5 Leads	1	Enclosed	0.5 %	Through Hole	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in
RECOM Power RAC03-24SER/277-TRAY	85 VAC	305 VAC	3 W	24 V	CE cURus		Household Appliances ITE (Commercial)			76 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	125 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-05SER/277	85 VAC	305 VAC	3 W	5 V	CE cURus		Household Appliances ITE (Commercial)			70 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	600 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-24SC	90 VAC	264 VAC	3 W	24 V	CE EN UL	125 mA	ITE (Commercial)	0.066 lb	29.94 g	78 %	85 °C	-25 °C	3 %	16-DIP Module 5 Leads	1	Enclosed	6 %	Through Hole	0.64 in		37.8 mm	1.49 in		0.94 in		23.9 mm	16.2 mm	Universal Input		60335-1 60950-1
RECOM Power RAC03-3.3SER/277	85 VAC	305 VAC	3 W	3.3 V	CE cURus		Household Appliances ITE (Commercial)			68 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	900 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-3.3SC	90 VAC	264 VAC	3 W	3.3 V	CE EN UL	900 mA	ITE (Commercial)	0.066 lb	29.94 g	63 %	85 °C	-25 °C	3 %	16-DIP Module 5 Leads	1	Enclosed	6 %	Through Hole	0.64 in		37.8 mm	1.49 in		0.94 in		23.9 mm	16.2 mm	Universal Input		60335-1 60950-1
RECOM Power RAC03-05SK	85 VAC 120 VDC	264 VAC 370 VDC	3 W	5 V	CE cURus	600 mA	Household Appliances ITE (Commercial)			74 %	80 ¯C	-40 °C	2.5 %	4-DIP Module	1	Enclosed	2.5 %	Through Hole			1.12 "		23.5 mm			0.93 "	0.7 in	Universal Input			28.5 mm	17.9 mm
RECOM Power RAC03-3.3SK	85 VAC 120 VDC	264 VAC 370 VDC	3 W	3.3 V	CE cURus	900 mA	Household Appliances ITE (Commercial)			69 %	80 ¯C	-40 °C	2.5 %	4-DIP Module	1	Enclosed	2.5 %	Through Hole			1.12 "		23.5 mm			0.93 "	0.7 in	Universal Input			28.5 mm	17.9 mm
RECOM Power RAC03-15SGA	85 VAC	305 VAC	3 W	15 V	CE cURus	200 mA	Household Appliances ITE (Commercial)	0.044 lb	19.96 g	78 %	85 °C	-40 °C	0.5 %	16-DIP Module 5 Leads	1	Enclosed	0.5 %	Through Hole	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in
RECOM Power RAC03-05SER/277-TRAY	85 VAC	305 VAC	3 W	5 V	CE cURus		Household Appliances ITE (Commercial)			70 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	600 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
