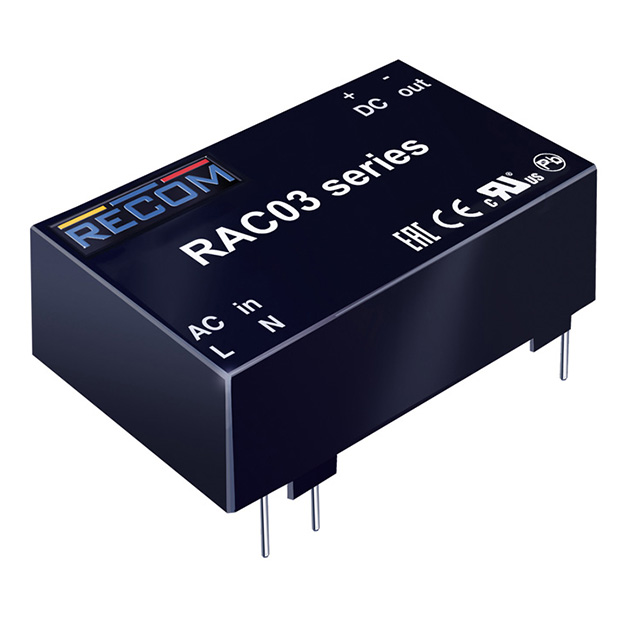

RAC03-3.3SC

Obsolete

RECOM Power

AC/DC CONVERTER 3.3V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RAC03-3.3SC

Obsolete

RECOM Power

AC/DC CONVERTER 3.3V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC03-3.3SC

Applications	ITE (Commercial)
Approval Agency	EN, CE, UL
Current - Output (Max) [Max]	900 mA
Efficiency	63 %
Features	Universal Input
Line Regulation	3 %
Load Regulation	6 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	16-DIP Module, 5 Leads
Power (Watts)	3 W
Size / Dimension [x]	1.49 in
Size / Dimension [x]	37.8 mm
Size / Dimension [y]	0.94 in
Size / Dimension [y]	23.9 mm
Size / Dimension [z]	0.64 in
Size / Dimension [z]	16.2 mm
Standard Number	60335-1, 60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	3.3 V
Weight	29.94 g
Weight	0.066 lb

RAC03-SER/277 Series

AC/DC Power Modules 3W 85-305Vin 5Vout 600mA Round/ Wire

Part	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1	Approval Agency	Current - Output (Max) [Max]	Applications	Weight	Weight	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Line Regulation	Package / Case	Number of Outputs	Type	Load Regulation	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 1	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Isolation	Standard Number	Size / Dimension [x]	Size / Dimension [z]
RECOM Power RAC03-3.3SGA	85 VAC	305 VAC	3 W	3.3 V	CE cURus	910 mA	Household Appliances ITE (Commercial)	0.044 lb	19.96 g	70 %	85 °C	-40 °C	0.5 %	16-DIP Module 5 Leads	1	Enclosed	0.5 %	Through Hole	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in
RECOM Power RAC03-24SER/277-TRAY	85 VAC	305 VAC	3 W	24 V	CE cURus		Household Appliances ITE (Commercial)			76 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	125 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-05SER/277	85 VAC	305 VAC	3 W	5 V	CE cURus		Household Appliances ITE (Commercial)			70 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	600 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-24SC	90 VAC	264 VAC	3 W	24 V	CE EN UL	125 mA	ITE (Commercial)	0.066 lb	29.94 g	78 %	85 °C	-25 °C	3 %	16-DIP Module 5 Leads	1	Enclosed	6 %	Through Hole	0.64 in		37.8 mm	1.49 in		0.94 in		23.9 mm	16.2 mm	Universal Input		60335-1 60950-1
RECOM Power RAC03-3.3SER/277	85 VAC	305 VAC	3 W	3.3 V	CE cURus		Household Appliances ITE (Commercial)			68 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	900 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V
RECOM Power RAC03-3.3SC	90 VAC	264 VAC	3 W	3.3 V	CE EN UL	900 mA	ITE (Commercial)	0.066 lb	29.94 g	63 %	85 °C	-25 °C	3 %	16-DIP Module 5 Leads	1	Enclosed	6 %	Through Hole	0.64 in		37.8 mm	1.49 in		0.94 in		23.9 mm	16.2 mm	Universal Input		60335-1 60950-1
RECOM Power RAC03-05SK	85 VAC 120 VDC	264 VAC 370 VDC	3 W	5 V	CE cURus	600 mA	Household Appliances ITE (Commercial)			74 %	80 ¯C	-40 °C	2.5 %	4-DIP Module	1	Enclosed	2.5 %	Through Hole			1.12 "		23.5 mm			0.93 "	0.7 in	Universal Input			28.5 mm	17.9 mm
RECOM Power RAC03-3.3SK	85 VAC 120 VDC	264 VAC 370 VDC	3 W	3.3 V	CE cURus	900 mA	Household Appliances ITE (Commercial)			69 %	80 ¯C	-40 °C	2.5 %	4-DIP Module	1	Enclosed	2.5 %	Through Hole			1.12 "		23.5 mm			0.93 "	0.7 in	Universal Input			28.5 mm	17.9 mm
RECOM Power RAC03-15SGA	85 VAC	305 VAC	3 W	15 V	CE cURus	200 mA	Household Appliances ITE (Commercial)	0.044 lb	19.96 g	78 %	85 °C	-40 °C	0.5 %	16-DIP Module 5 Leads	1	Enclosed	0.5 %	Through Hole	0.59 in	15 mm	37 mm	1.46 in	24 mm	0.94 in
RECOM Power RAC03-05SER/277-TRAY	85 VAC	305 VAC	3 W	5 V	CE cURus		Household Appliances ITE (Commercial)			70 %	85 °C	-40 °C			1	Enclosed		Chassis Mount	0.43 "		50.3 mm	1.98 in		1.98 in	600 mA	50.3 mm	11 mm	DC Input Capable Universal Input	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 17.15

Description

General part information

RAC03-SER/277 Series

AC/DC Power Modules 3W 85-305Vin 5Vout 600mA Round/ Wire
