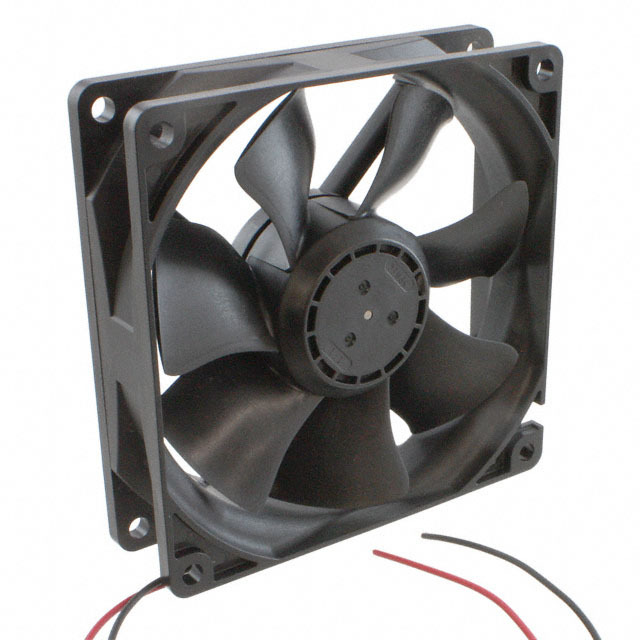

09225SA-12L-EA-D0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, BALL, 39.9CFM, 0.1A, 12V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, BALL, 39.9CFM, 0.1A, 12V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Lifetime @ Temp.	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Material - Blade	Voltage - Rated	Material - Frame	Bearing Type	Ingress Protection	Termination	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Noise	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Features
NMB TECHNOLOGIES 09225SA-24K-EL-D0	40000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball	IP55 - Dust Protected Water Resistant	2 Wire Leads
NMB TECHNOLOGIES 09225SA-24M-EA-00	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball		2 Wire Leads	1.56 W	0.154 in H2O	38.4 Pa	48.4 CFM	1.35 mł/min	2750 RPM	32 dB	70 mA	27.6 VDC	12 VDC
NMB TECHNOLOGIES 09225SA-12P-EA-00		25 mm					Tubeaxial		12 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-24P-EA-00		25 mm					Tubeaxial		24 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-24M-AA-00	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball		2 Wire Leads	1.56 W	0.154 in H2O	38.4 Pa	48.4 CFM	1.35 mł/min	2750 RPM	32 dB	70 mA	27.6 VDC	12 VDC
NMB TECHNOLOGIES 09225SA-24P-AA-00		25 mm					Tubeaxial		24 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-12P-ET-00		25 mm					Tubeaxial		12 VDC		Ball		3 Wire Leads											Speed Sensor (Tach)
NMB TECHNOLOGIES 09225SA-12L-EA-D0	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	12 VDC	Plastic	Ball		2 Wire Leads	1.2 W	0.12 in H2O	29.9 Pa	41.3 CFM	1.16 mł/min	2400 RPM	28 dB	100 mA	13.8 VDC	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 41.3 CFM (1.16m³/min) 2 Wire Leads
