09225SA-12P-ET-00

Obsolete

NMB TECHNOLOGIES

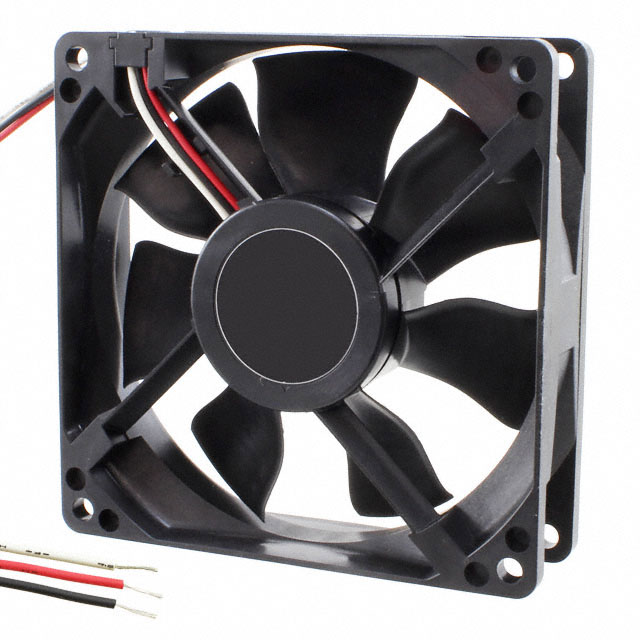

FAN AXIAL 92X25MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

FAN AXIAL 92X25MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Lifetime @ Temp.	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Material - Blade	Voltage - Rated	Material - Frame	Bearing Type	Ingress Protection	Termination	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	RPM	Noise	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Features
NMB TECHNOLOGIES 09225SA-24K-EL-D0	40000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball	IP55 - Dust Protected Water Resistant	2 Wire Leads
NMB TECHNOLOGIES 09225SA-24M-EA-00	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball		2 Wire Leads	1.56 W	0.154 in H2O	38.4 Pa	48.4 CFM	1.35 mł/min	2750 RPM	32 dB	70 mA	27.6 VDC	12 VDC
NMB TECHNOLOGIES 09225SA-12P-EA-00		25 mm					Tubeaxial		12 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-24P-EA-00		25 mm					Tubeaxial		24 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-24M-AA-00	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	24 VDC	Plastic	Ball		2 Wire Leads	1.56 W	0.154 in H2O	38.4 Pa	48.4 CFM	1.35 mł/min	2750 RPM	32 dB	70 mA	27.6 VDC	12 VDC
NMB TECHNOLOGIES 09225SA-24P-AA-00		25 mm					Tubeaxial		24 VDC		Ball		2 Wire Leads
NMB TECHNOLOGIES 09225SA-12P-ET-00		25 mm					Tubeaxial		12 VDC		Ball		3 Wire Leads											Speed Sensor (Tach)
NMB TECHNOLOGIES 09225SA-12L-EA-D0	100000 Hrs	25 mm	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	Plastic	12 VDC	Plastic	Ball		2 Wire Leads	1.2 W	0.12 in H2O	29.9 Pa	41.3 CFM	1.16 mł/min	2400 RPM	28 dB	100 mA	13.8 VDC	6 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Ball 3 Wire Leads

Technical documentation and resources
