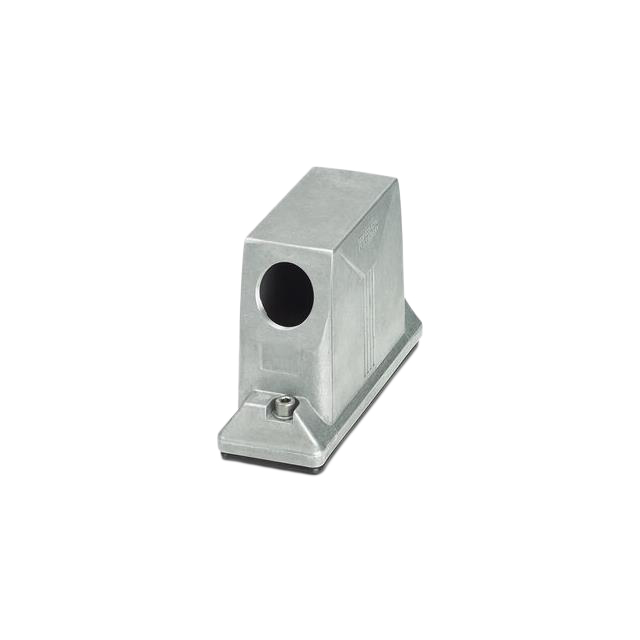

HEAVY DUTY POWER CONNECTORS HC-ADV-B24-HHWH- 1STM40-EMC-AL

Search across all available documentation for this part.

Active

Phoenix Contact

HEAVY DUTY POWER CONNECTORS HC-ADV-B24-HHWH- 1STM40-EMC-AL

Technical Specifications

Parameters and characteristics for this part

Specification	1413433

Connector Type	Hood
Features	Salt Water Resistant
Housing Material	Die Cast, Aluminum
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	B24
Size / Dimension [x]	152 mm
Size / Dimension [x]	5.984 in
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	93.7 mm
Size / Dimension [z]	3.689 "
Style	Side Entry

Heavy Duty Power Connectors HC-ADV-B16-HHWH- 1TTM40-MF-BK

Part	Connector Type	Housing Material	Style	Lock Location	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Accessory Type	Ratings	Specifications	For Use With/Related Products
Phoenix Contact 1460363	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	92 mm	3.622 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B6	IP65 IP67	M25
Phoenix Contact 1587661	Hood	Aluminum Die Cast	Top Entry	Screw Locks on Hood	Salt Water Resistant	2.244 "	126 mm	4.961 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B16	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	M32
Phoenix Contact 1413433	Hood	Aluminum Die Cast	Side Entry	Screw Locks on Hood	Salt Water Resistant	2.244 "	152 mm	5.984 in	3.689 "	93.7 mm	57 mm	125 °C	-40 °C	B24	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K
Phoenix Contact 1460373	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	152 mm	5.984 in	3.937 "			125 °C	-40 °C	B24	IP66/IP67	M32	100 mm	57 mm
Phoenix Contact 1460365	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	105 mm	4.134 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B10	IP65 IP67	M25
Phoenix Contact 1580539																			Cover	IP65	Screw Locks	Heavycon-Advance® B32 Bases
