1460363

Active

Phoenix Contact

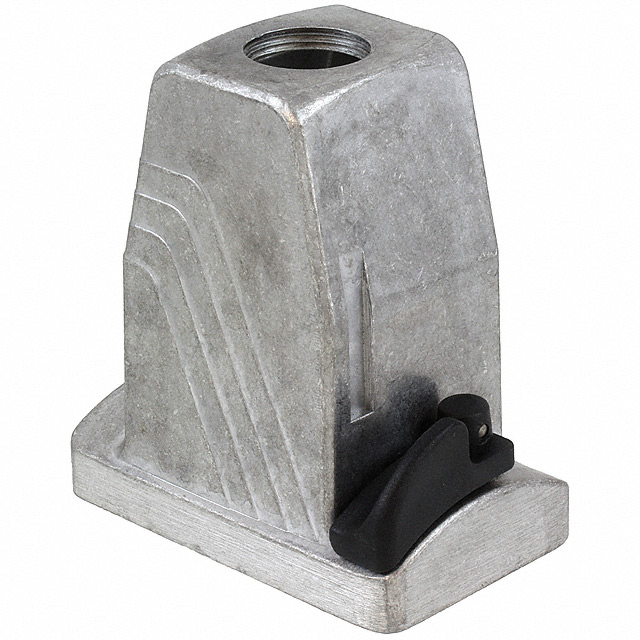

HEAVY DUTY POWER CONNECTORS HC-B 6-TMB-100/ O1STM25G-EEE

Search across all available documentation for this part.

Active

Phoenix Contact

HEAVY DUTY POWER CONNECTORS HC-B 6-TMB-100/ O1STM25G-EEE

Technical Specifications

Parameters and characteristics for this part

Heavy Duty Power Connectors HC-ADV-B16-HHWH- 1TTM40-MF-BK

Part	Connector Type	Housing Material	Style	Lock Location	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Accessory Type	Ratings	Specifications	For Use With/Related Products
Phoenix Contact 1460363	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	92 mm	3.622 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B6	IP65 IP67	M25
Phoenix Contact 1587661	Hood	Aluminum Die Cast	Top Entry	Screw Locks on Hood	Salt Water Resistant	2.244 "	126 mm	4.961 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B16	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	M32
Phoenix Contact 1413433	Hood	Aluminum Die Cast	Side Entry	Screw Locks on Hood	Salt Water Resistant	2.244 "	152 mm	5.984 in	3.689 "	93.7 mm	57 mm	125 °C	-40 °C	B24	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K
Phoenix Contact 1460373	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	152 mm	5.984 in	3.937 "			125 °C	-40 °C	B24	IP66/IP67	M32	100 mm	57 mm
Phoenix Contact 1460365	Hood	Aluminum Die Cast	Top Entry	Bayonet Lock on Hood	Salt Water Resistant	2.244 "	105 mm	4.134 "	3.937 "	100 mm	57 mm	125 °C	-40 °C	B10	IP65 IP67	M25
Phoenix Contact 1580539																			Cover	IP65	Screw Locks	Heavycon-Advance® B32 Bases

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors HC-ADV-B16-HHWH- 1TTM40-MF-BK

Technical documentation and resources
