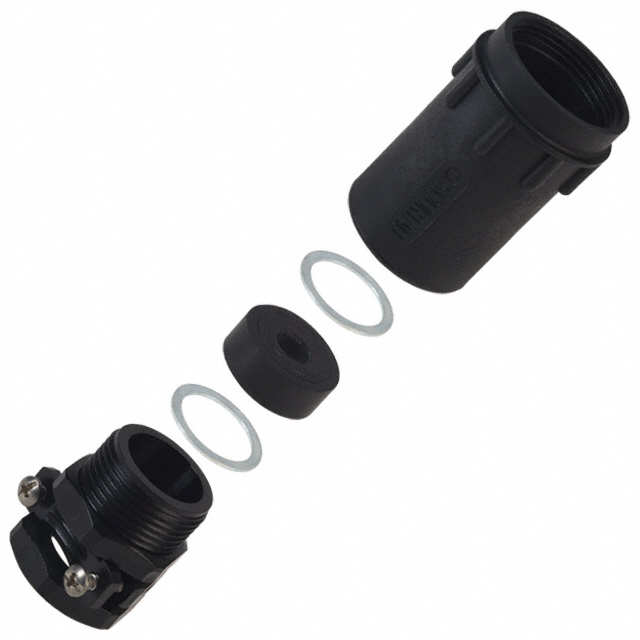

UTG16PG
ActiveSouriau-Sunbank by Eaton
CONN BACKSH W/CLMP SZ16 BLK PG16
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UTG16PG
ActiveSouriau-Sunbank by Eaton
CONN BACKSH W/CLMP SZ16 BLK PG16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UTG16PG |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [custom] | 0.807 in |
| Cable Opening [Max] [custom] | 20.5 mm |
| Cable Opening [Min] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 8 mm |
| Color | Black |
| Diameter - Outside [diameter] | 30.2 mm |
| Diameter - Outside [diameter] | 1.189 " |
| Features | Clamp Screws, Cable Gland, Washers |
| For Use With/Related Products | Trim Trio® UTG and UTP Connectors |
| Includes | 2 Washers, 2 Screws, 1 Backshell, 1 Cable Gland, 1 Cable Clamp |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Material | Thermoplastic |
| Shell Size - Insert | 16 |
| Thread Size | PG16 |
| Type | Backshell, Cable Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.49 | |
| 10 | $ 12.84 | |||
| 25 | $ 12.35 | |||
| 50 | $ 11.85 | |||
| 100 | $ 11.19 | |||
| 250 | $ 10.21 | |||
| 500 | $ 9.55 | |||
| 1000 | $ 8.76 | |||
Description
General part information
UTG16 Series
Black Connector Backshell, Cable Clamp PG16 16
