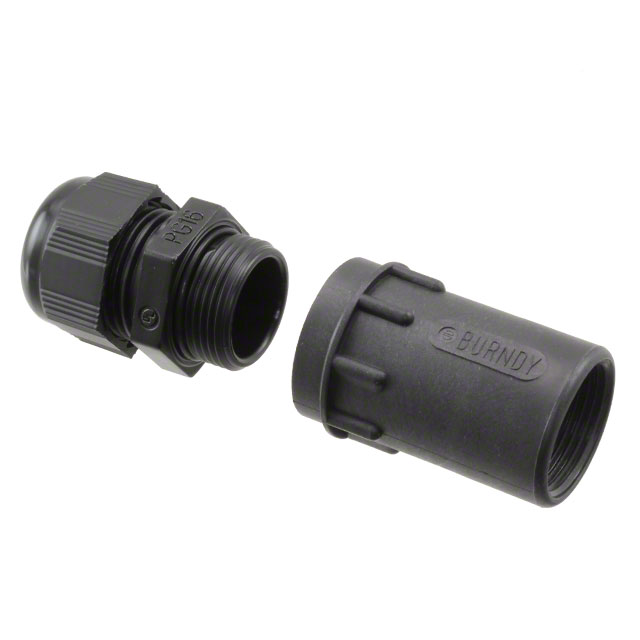

UTG16ST

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ16 BLK PG16

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ16 BLK PG16

Technical Specifications

Parameters and characteristics for this part

Specification	UTG16ST

Cable Exit	180 °
Cable Opening [diameter]	12 mm, 7 mm
Cable Opening [diameter]	0.472 in, 0.276 in
Color	Black
Diameter - Outside [diameter]	30.2 mm
Diameter - Outside [diameter]	1.189 "
For Use With/Related Products	Trim Trio® UTG and UTP Connectors
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Thermoplastic
Shell Size - Insert	16
Thread Size	PG16
Type	Backshell, Cable Clamp

Part	Includes	Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shell Size - Insert	Thread Size	Color	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Ingress Protection	For Use With/Related Products	Cable Exit	Type	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [custom]	Shielding
Souriau-Sunbank by Eaton UTG16PG	1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	Thermoplastic	0.315 in	8 mm	0.807 in	20.5 mm	16	PG16	Black	Cable Gland Clamp Screws Washers	30.2 mm	1.189 "	IP65 - Dust Tight Water Resistant	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp
Souriau-Sunbank by Eaton UTG16ST		Thermoplastic					16	PG16	Black		30.2 mm	1.189 "	IP65 - Dust Tight Water Resistant	Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp	7 mm 12 mm	0.276 in 0.472 in
Souriau-Sunbank by Eaton UTG16AC	1 Backshell 2 pc Cable Clamp 2 Screws	Thermoplastic	0.197 in	5 mm	0.669 in		16	15/16-20 UNEF	Black	Clamp Screws	30.2 mm	1.189 "		Trim Trio® UTG and UTP Connectors	180 °	Backshell Cable Clamp			17 mm
Souriau-Sunbank by Eaton UTG16LPGN		Brass	0.315 in	8 mm	0.807 in	20.5 mm	16	PG16	Silver	Clamp Screws				Trim Trio® UTG and UTP Connectors	90 °	Backshell Cable Clamp				Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp PG16 16
