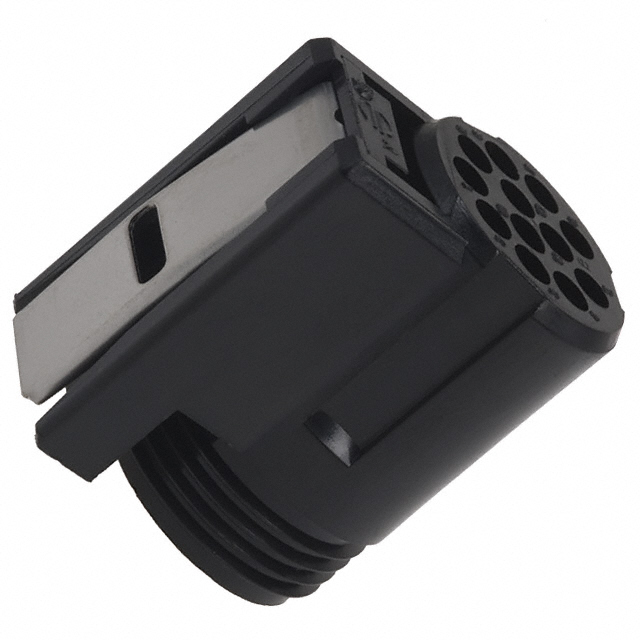

MBG12P-1

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 12POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 12POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MBG12P-1

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	12
Shielding	Unshielded
Type	For Female Sockets

Part	For Use With/Related Products	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Color	Cable Exit	Features	Material	Type	Includes	Mounting Type	Shell Material	Shell Size - Insert	Insert Material	Contact Size	Note	Number of Positions	Contact Shape	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Type	Connector Type	Fastening Type
Souriau-Sunbank by Eaton MBG12S-1	MBG Connectors	0.74 in	18.8 mm	UL94 V-0	Black	180 °	Clamp Screws	Thermoplastic Glass Filled	Backshell Cable Clamp	1 Backshell 2 Screws 3 pc Cable Clamp
Souriau-Sunbank by Eaton MBG12P-1				UL94 V-0					For Female Sockets		Free Hanging (In-Line)	Thermoplastic Polyester	12	Thermoplastic Halogen Free	16	Contacts Not Included	12	Circular	Unshielded	-55 °C	125 °C	Black	Crimp	Plug Housing	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Plug Housing Free Hanging (In-Line)
