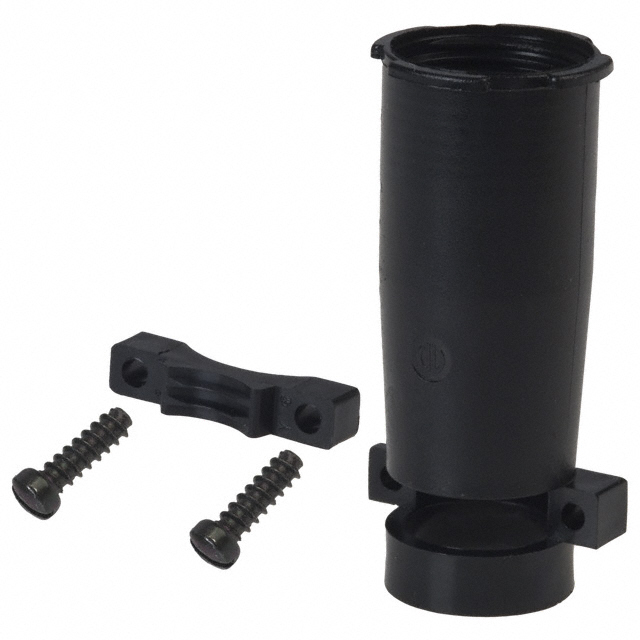

MBG12S-1

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL W/CLMP BLACK

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSHELL W/CLMP BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	MBG12S-1

Cable Exit	180 °
Cable Opening [diameter]	0.74 in
Cable Opening [diameter]	18.8 mm
Color	Black
Features	Clamp Screws
For Use With/Related Products	MBG Connectors
Includes	2 Screws, 1 Backshell, 3 pc Cable Clamp
Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Type	Backshell, Cable Clamp

Part	For Use With/Related Products	Cable Opening [diameter]	Cable Opening [diameter]	Material Flammability Rating	Color	Cable Exit	Features	Material	Type	Includes	Mounting Type	Shell Material	Shell Size - Insert	Insert Material	Contact Size	Note	Number of Positions	Contact Shape	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Type	Connector Type	Fastening Type
Souriau-Sunbank by Eaton MBG12S-1	MBG Connectors	0.74 in	18.8 mm	UL94 V-0	Black	180 °	Clamp Screws	Thermoplastic Glass Filled	Backshell Cable Clamp	1 Backshell 2 Screws 3 pc Cable Clamp
Souriau-Sunbank by Eaton MBG12P-1				UL94 V-0					For Female Sockets		Free Hanging (In-Line)	Thermoplastic Polyester	12	Thermoplastic Halogen Free	16	Contacts Not Included	12	Circular	Unshielded	-55 °C	125 °C	Black	Crimp	Plug Housing	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp
