R191597800

Active

Radiall USA, Inc.

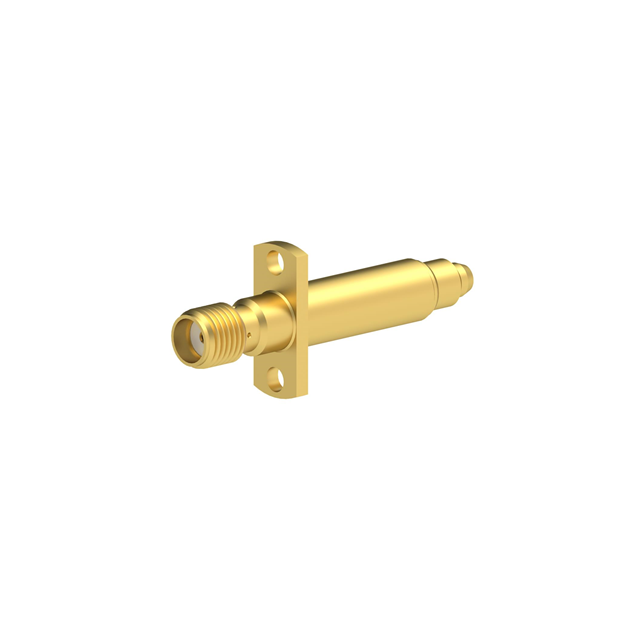

SMA FEMALE FLANGE TEST PROBE FOR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FEMALE FLANGE TEST PROBE FOR

Technical Specifications

Parameters and characteristics for this part

Specification	R191597800

Body Finish	Gold
Body Material	Brass
Center Contact Finish	Gold
Center Contact Material	Beryllium Copper
Color	Gold
Connector Style	SMA
For Use With/Related Products	MML Receptacle

Part	Body Finish	Adapter Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Conversion Type	Dielectric Material	Body Material	Center Contact Plating	Convert From (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Center Contact Material	Impedance	Adapter Series [Max]	Adapter Series [Min]	Mounting Feature	Mating Cycles	Features	Fastening Type	Adapter Series	Color	Center Contact Finish	Connector Style	For Use With/Related Products
Radiall USA, Inc. R191592017	White Bronze	Plug to Jack	Straight	90 °C	-55 °C	Free Hanging (In-Line)	Between Series	Polytetrafluoroethylene (PTFE)	Brass	Silver	4.3/10 Plug Male Pin	7/16 Jack Female Socket	6000 MHz	Bronze	50 Ohms	7/16	4.3/10
Radiall USA, Inc. R191593400	Gold	Plug to Jack	Straight	165 °C	-65 ░C		Between Series	Polytetrafluoroethylene (PTFE)	Brass	Gold	Female Socket SMA Jack		18 GHz	Beryllium Copper	50 Ohms			Flange	500	Limited Detent	Snap-On Threaded	SMA to SMP
Radiall USA, Inc. R191597800	Gold								Brass					Beryllium Copper									Gold	Gold	SMA	MML Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 278.49

General part information

Connector Measurement Probe For MML Receptacle
