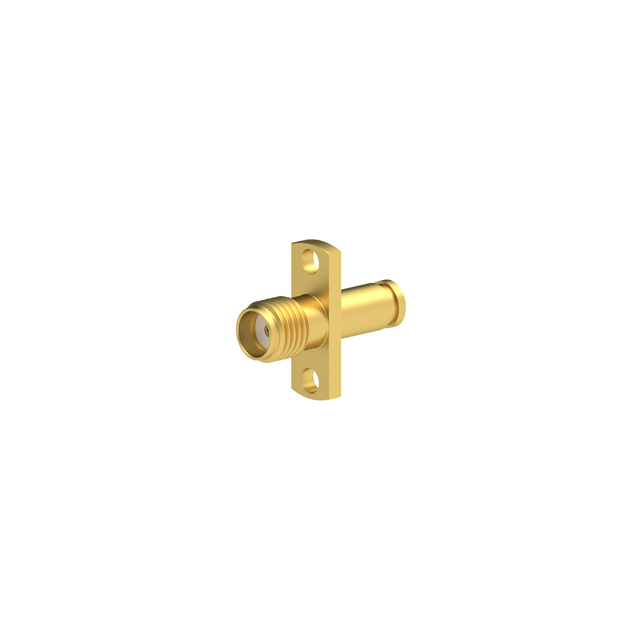

R191593400

Active

Radiall USA, Inc.

SMA FEMALE - SMP-LOCK MALE ADAPT

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FEMALE - SMP-LOCK MALE ADAPT

Technical Specifications

Parameters and characteristics for this part

Specification	R191593400

Adapter Series	SMA to SMP
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Features	Limited Detent
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Finish	Adapter Type	Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Conversion Type	Dielectric Material	Body Material	Center Contact Plating	Convert From (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Center Contact Material	Impedance	Adapter Series [Max]	Adapter Series [Min]	Mounting Feature	Mating Cycles	Features	Fastening Type	Adapter Series	Color	Center Contact Finish	Connector Style	For Use With/Related Products
Radiall USA, Inc. R191592017	White Bronze	Plug to Jack	Straight	90 °C	-55 °C	Free Hanging (In-Line)	Between Series	Polytetrafluoroethylene (PTFE)	Brass	Silver	4.3/10 Plug Male Pin	7/16 Jack Female Socket	6000 MHz	Bronze	50 Ohms	7/16	4.3/10
Radiall USA, Inc. R191593400	Gold	Plug to Jack	Straight	165 °C	-65 ░C		Between Series	Polytetrafluoroethylene (PTFE)	Brass	Gold	Female Socket SMA Jack		18 GHz	Beryllium Copper	50 Ohms			Flange	500	Limited Detent	Snap-On Threaded	SMA to SMP
Radiall USA, Inc. R191597800	Gold								Brass					Beryllium Copper									Gold	Gold	SMA	MML Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To SMP Plug, Male Pin 50 Ohms
