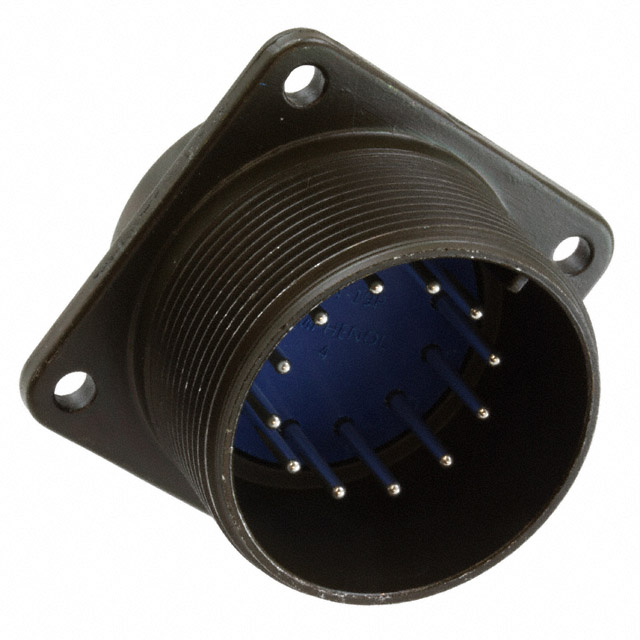

97-3102A-24-19P

Active

Amphenol Industrial Operations

CONN RCPT MALE 12P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-24-19P

Active

Amphenol Industrial Operations

CONN RCPT MALE 12P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-24-19P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	24-19
Shielding	Unshielded

97-3102A24 Series

Part	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Insert Material	Shielding	Mounting Feature	Orientation	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Color	Contact Material	Connector Type	Contact Finish - Mating	Shell Size - Insert	Number of Positions
Amphenol Industrial Operations 97-3102A-24-10P	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium	24	10	7	Olive Drab	Copper Alloy	Male Pins Receptacle	Silver
Amphenol Industrial Operations 97-3102A-24-19S	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium			12	Olive Drab	Copper Alloy	Receptacle Female Sockets	Silver	24-19
Amphenol Industrial Operations 97-3102A-24-28P(946)	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Black Zinc Alloy	24	28	24	Black	Copper Alloy	Male Pins Receptacle	Silver
Amphenol Industrial Operations 97-3102A-24-5S	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium				Olive Drab	Copper Alloy	Receptacle Female Sockets	Silver	24-5	16
Amphenol Industrial Operations 97-3102A-24-5P	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium				Olive Drab	Copper Alloy	Male Pins Receptacle	Silver	24-5	16
Amphenol Industrial Operations 97-3102A-24-19P	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium			12	Olive Drab	Copper Alloy	Male Pins Receptacle	Silver	24-19
Amphenol Industrial Operations 97-3102A24-28SW	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	W	Olive Drab Chromate over Cadmium	24	28	24	Olive Drab	Copper Alloy	Receptacle Female Sockets	Silver
Amphenol Industrial Operations 97-3102A-24-7P	Aluminum Alloy	Automotive Industrial	-55 °C	125 °C	Metal	Diallyl Phthalate (DAP)	Unshielded	Flange	N	Olive Drab Chromate over Cadmium				Olive Drab	Copper Alloy	Male Pins Receptacle	Silver	24-7	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.66
		10	$ 106.13
		25	$ 102.05
		50	$ 98.65
		100	$ 93.21

Description

General part information

97-3102A24 Series

12 Position Circular Connector Receptacle, Male Pins Solder Cup
