A6FR-2104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6FR-2104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6FR-2104

Actuator Level	Raised
Actuator Type	Piano
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	0.261 "
Length	6.63 mm
Mechanical Life	1000 Cycles
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

A6FR Series

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Circuit	Length	Length	Number of Positions	Actuator Type	Termination Style	Voltage Rating	Length	Length [x]
Omron Electronics Inc-EMC Div A6FR-9104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.961 in	24.41 mm	9	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-8104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.861 "	21.87 mm	8	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-3104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST		9.17 mm		Piano	PC Pin	24 VDC	0.361 "
Omron Electronics Inc-EMC Div A6FR-0101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST	1.061 in	26.95 mm	10	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-0104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	1.061 in	26.95 mm	10	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-7101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST		19.33 mm	7	Piano	PC Pin	24 VDC		0.761 "
Omron Electronics Inc-EMC Div A6FR-7104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST		19.33 mm	7	Piano	PC Pin	24 VDC		0.761 "
Omron Electronics Inc-EMC Div A6FR-2104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.261 "	6.63 mm	2	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-3101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST		9.17 mm		Piano	PC Pin	24 VDC	0.361 "
Omron Electronics Inc-EMC Div A6FR-9101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST	0.961 in	24.41 mm	9	Piano	PC Pin	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.14
		10	$ 1.10
		70	$ 0.96
		140	$ 0.89
		280	$ 0.81
		560	$ 0.76
		1050	$ 0.70
		2520	$ 0.64
		5040	$ 0.59

Description

General part information

A6FR Series

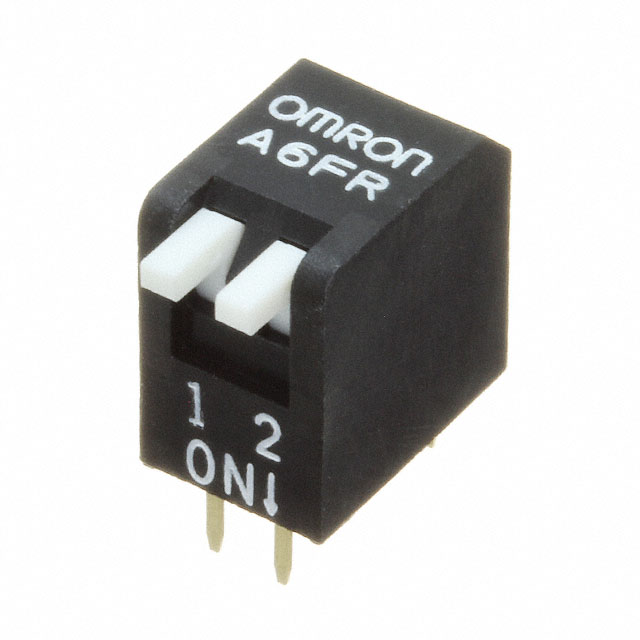

Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
