A6FR-3104

Active

Omron Electronics Inc-EMC Div

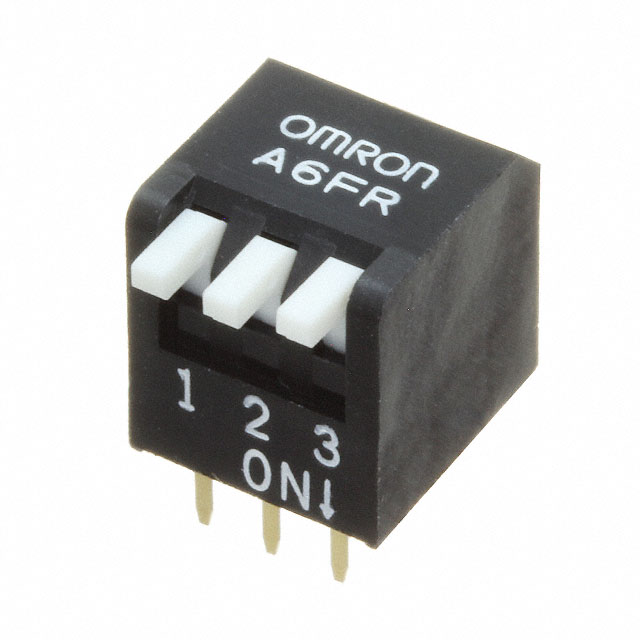

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6FR-3104

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6FR-3104

Actuator Level	Raised
Actuator Type	Piano
Circuit	SPST
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board	10.2 mm
Height Above Board	0.402 in
Length	9.17 mm
Length	0.361 "
Mechanical Life	1000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	24 VDC
Washable	False

A6FR Series

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Electrical Life	Current Rating (Amps)	Mounting Type	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Circuit	Length	Length	Number of Positions	Actuator Type	Termination Style	Voltage Rating	Length	Length [x]
Omron Electronics Inc-EMC Div A6FR-9104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.961 in	24.41 mm	9	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-8104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.861 "	21.87 mm	8	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-3104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST		9.17 mm		Piano	PC Pin	24 VDC	0.361 "
Omron Electronics Inc-EMC Div A6FR-0101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST	1.061 in	26.95 mm	10	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-0104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	1.061 in	26.95 mm	10	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-7101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST		19.33 mm	7	Piano	PC Pin	24 VDC		0.761 "
Omron Electronics Inc-EMC Div A6FR-7104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST		19.33 mm	7	Piano	PC Pin	24 VDC		0.761 "
Omron Electronics Inc-EMC Div A6FR-2104	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Raised	-20 C	70 °C	1000 Cycles	SPST	0.261 "	6.63 mm	2	Piano	PC Pin	24 VDC
Omron Electronics Inc-EMC Div A6FR-3101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST		9.17 mm		Piano	PC Pin	24 VDC	0.361 "
Omron Electronics Inc-EMC Div A6FR-9101	10.2 mm	0.402 in	0.1 in	Full	2.54 mm	1000 Cycles	25 mA	Through Hole Right Angle	Flush Recessed	-20 C	70 °C	1000 Cycles	SPST	0.961 in	24.41 mm	9	Piano	PC Pin	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.50
		10	$ 1.22
		25	$ 1.12
		100	$ 0.99
		250	$ 0.90
		500	$ 0.85
		1000	$ 0.79
		2500	$ 0.73
		5000	$ 0.68

Description

General part information

A6FR Series

Dip Switch SPST 3 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
