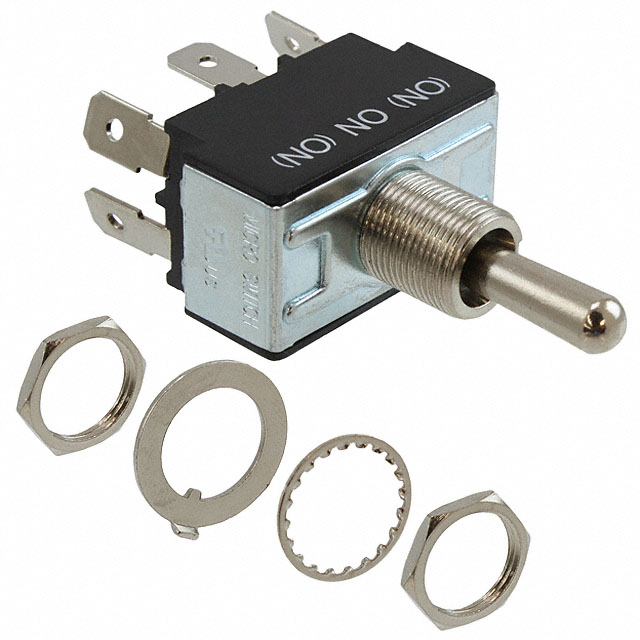

12TS95127-7
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE DPDT 10A 125V
Deep-Dive with AI
Search across all available documentation for this part.
12TS95127-7
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE DPDT 10A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 12TS95127-7 |
|---|---|
| Actuator Length [x] | 16.51 mm |
| Actuator Material | Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Current Rating (Amps) | 10 A |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -54 °C |
| Panel Cutout Dimensions [diameter] | 12.4 mm |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
12TS9 Series
Toggle Switch DPDT Panel Mount
Documents
Technical documentation and resources
No documents available
