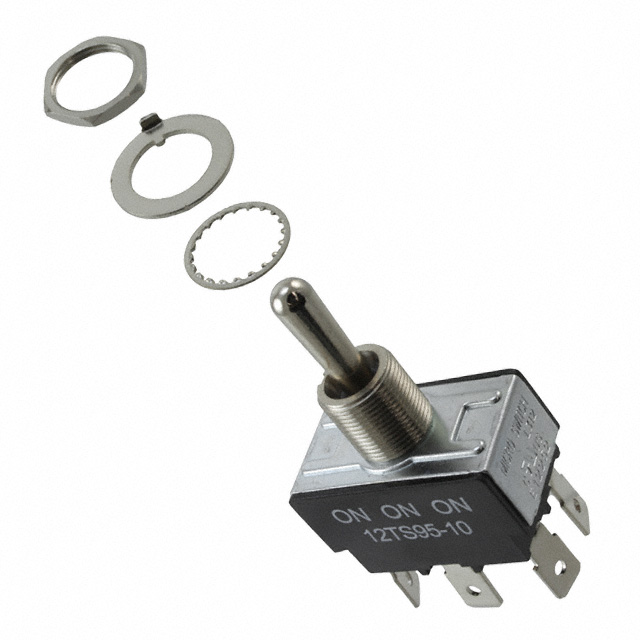

12TS95-10

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SP3T 20A 125V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SP3T 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12TS95-10

Actuator Length [x]	16.51 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SP3T
Current Rating (Amps)	20 A
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-54 °C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Bushing Thread	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Switch Function	Voltage Rating - AC	Actuator Type	Illumination	Actuator Material	Features
Honeywell Sensing and Productivity Solutions 12TS95-1	12.4 mm	Quick Connect - 0.250" (6.3mm)	20 A	15/32-32	DPDT	-54 °C	71 °C	16.51 mm	On-Off-On	125 V	Standard Round	Non-Illuminated	Nickel Plated
Honeywell Sensing and Productivity Solutions 12TS95-5	12.4 mm	Quick Connect - 0.250" (6.3mm)	20 A	15/32-32	DPDT	-54 °C	71 °C	16.51 mm	On-Off-Mom	125 V	Standard Round	Non-Illuminated	Nickel Plated
Honeywell Sensing and Productivity Solutions 12TS95-10	12.4 mm	Quick Connect - 0.250" (6.3mm)	20 A	15/32-32	SP3T	-54 °C	71 °C	16.51 mm	On-On-On	125 V	Standard Round	Non-Illuminated	Nickel Plated	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 12TS95127-7	12.4 mm	Quick Connect - 0.250" (6.3mm)	10 A	15/32-32	DPDT	-54 °C	71 °C	16.51 mm	Mom-Off-Mom	125 V	Standard Round	Non-Illuminated	Nickel Plated
Honeywell Sensing and Productivity Solutions 12TS95-70	12.4 mm	Quick Connect - 0.250" (6.3mm)	20 A	15/32-32	DPDT	-54 °C	71 °C	16.51 mm	Mom-On-Mom	125 V	Standard Round	Non-Illuminated	Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Toggle Switch SP3T Panel Mount
