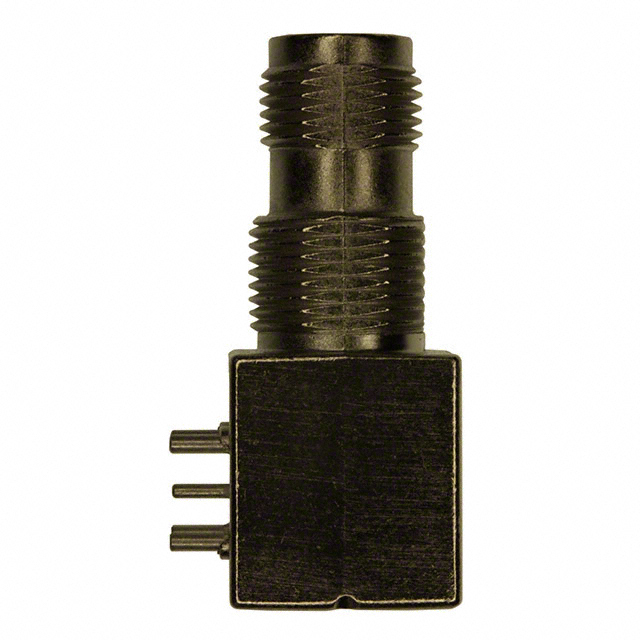

CONNECTOR: TNC; SOCKET; FEMALE; ANGLED 90°; 50Ω; THT; GOLD-PLATED

Deep-Dive with AI

Search across all available documentation for this part.

031-5660

Active

Amphenol RF

CONNECTOR: TNC; SOCKET; FEMALE; ANGLED 90°; 50Ω; THT; GOLD-PLATED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-5660

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

031-56 Series

Part	Contact Termination	Cable Group	Number of Ports	Shield Termination	Center Contact Material	Mating Cycles	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Housing Color	Dielectric Material	Impedance	Center Contact Plating	Body Finish	Body Material	Frequency - Max [Max]	Connector Type	Mounting Feature	Insertion Loss	Features	Fastening Type
Amphenol RF 031-5678	Crimp Solder	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Crimp	Brass	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Jack Male Pin
Amphenol RF 031-5677	Crimp Solder	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Crimp	Phosphor Bronze	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Female Socket Plug
Amphenol RF 031-5660	Solder		1	Solder	Beryllium Copper	500	TNC	-40 °C	85 °C	Panel Mount Right Angle Through Hole	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Zinc Die Cast	11 GHz	Female Socket Jack	Bulkhead - Front Side Nut	0.2 dB
Amphenol RF 031-5680	Solder	Belden 9913 Belden 9914 LMR-400	1	Crimp	Beryllium Copper	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Female Socket Plug
Amphenol RF 031-5684	Crimp	Belden 9913 Belden 9914 LMR-400	1	Crimp	Brass	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Jack Male Pin
Amphenol RF 031-5637	Solder		1	Solder	Phosphor Bronze	500	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	500 V	Silver	Polypropylene (PP)	50 Ohms	Gold	Nickel	Zinc Die Cast	4 GHz	Female Socket Jack	Bulkhead - Front Side Nut	0.2 dB	Board Guide	Bayonet Lock
