031-5684

Active

Amphenol RF

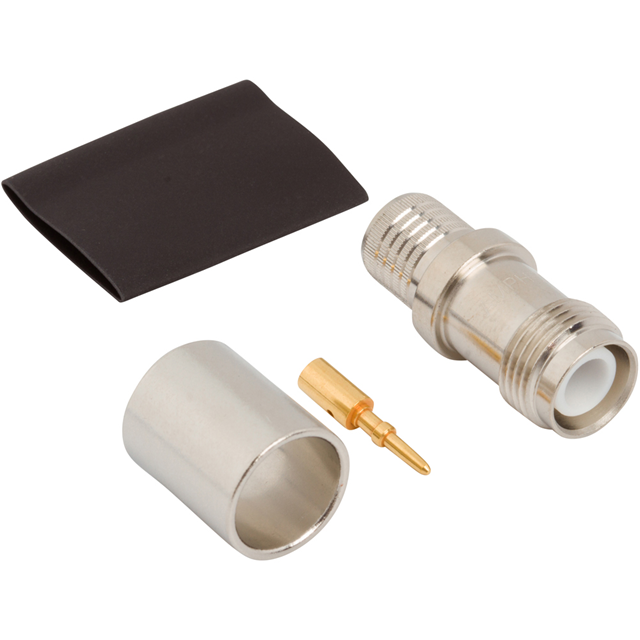

CONN RP-TNC JACK STR 50OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

031-5684

Active

Amphenol RF

CONN RP-TNC JACK STR 50OHM CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-5684

Body Finish	Nickel
Body Material	Brass
Cable Group	LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-TNC
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

031-56 Series

Part	Contact Termination	Cable Group	Number of Ports	Shield Termination	Center Contact Material	Mating Cycles	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating	Housing Color	Dielectric Material	Impedance	Center Contact Plating	Body Finish	Body Material	Frequency - Max [Max]	Connector Type	Mounting Feature	Insertion Loss	Features	Fastening Type
Amphenol RF 031-5678	Crimp Solder	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Crimp	Brass	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Jack Male Pin
Amphenol RF 031-5677	Crimp Solder	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	1	Crimp	Phosphor Bronze	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Female Socket Plug
Amphenol RF 031-5660	Solder		1	Solder	Beryllium Copper	500	TNC	-40 °C	85 °C	Panel Mount Right Angle Through Hole	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Zinc Die Cast	11 GHz	Female Socket Jack	Bulkhead - Front Side Nut	0.2 dB
Amphenol RF 031-5680	Solder	Belden 9913 Belden 9914 LMR-400	1	Crimp	Beryllium Copper	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line) Right Angle	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Female Socket Plug
Amphenol RF 031-5684	Crimp	Belden 9913 Belden 9914 LMR-400	1	Crimp	Brass	500	RP-TNC	-65 ░C	165 °C	Free Hanging (In-Line)	500 V	Silver	Polytetrafluoroethylene (PTFE)	50 Ohms	Gold	Nickel	Brass	11 GHz	Jack Male Pin
Amphenol RF 031-5637	Solder		1	Solder	Phosphor Bronze	500	BNC	-55 °C	85 °C	Panel Mount Right Angle Through Hole	500 V	Silver	Polypropylene (PP)	50 Ohms	Gold	Nickel	Zinc Die Cast	4 GHz	Female Socket Jack	Bulkhead - Front Side Nut	0.2 dB	Board Guide	Bayonet Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

031-56 Series

RP-TNC Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
