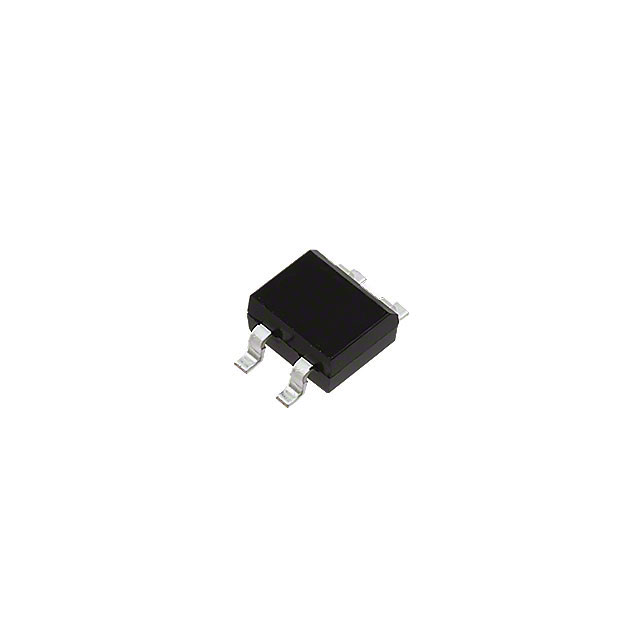

CBR1-D060S TR13 PBFREE

Active

Central Semiconductor Corp

BRIDGE RECT 1P 600V 1A 4-SMDIP

Search across all available documentation for this part.

Active

Central Semiconductor Corp

BRIDGE RECT 1P 600V 1A 4-SMDIP

Technical Specifications

Parameters and characteristics for this part

Specification	CBR1-D060S TR13 PBFREE

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMDIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Mounting Type	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Type	Voltage - Peak Reverse (Max) [Max]
Central Semiconductor Corp CBR1-D060 PBFREE	Through Hole	1 A	4-DIP	4-EDIP (0.300" 7.62mm)	150 °C	-65 °C	Standard	1.1 V	10 µA	Single Phase	600 V
Central Semiconductor Corp CBR1-D060S TR13 PBFREE	Surface Mount	1 A	4-SMDIP	4-SMD Gull Wing	150 °C	-65 °C	Standard	1.1 V	10 µA	Single Phase	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Surface Mount 4-SMDIP
