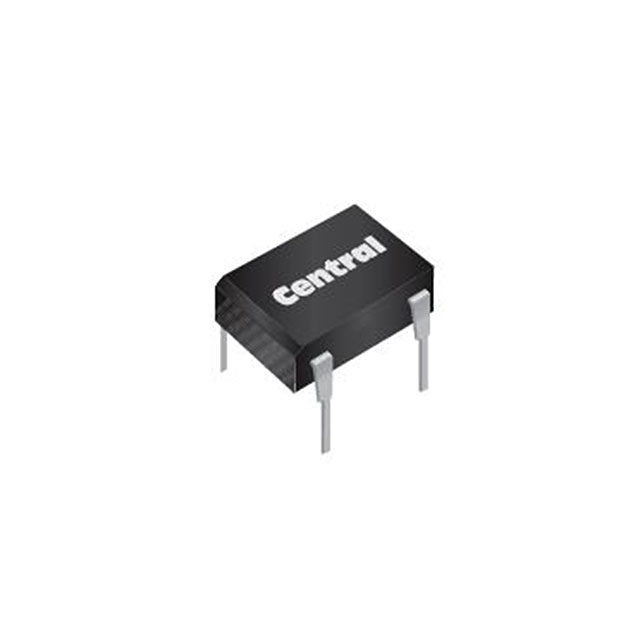

CBR1-D060 PBFREE

Active

Central Semiconductor Corp

BRIDGE RECT 1PHASE 600V 1A 4DIP

Search across all available documentation for this part.

Active

Central Semiconductor Corp

BRIDGE RECT 1PHASE 600V 1A 4DIP

Technical Specifications

Parameters and characteristics for this part

Specification	CBR1-D060 PBFREE

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-EDIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Mounting Type	Current - Average Rectified (Io)	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Type	Voltage - Peak Reverse (Max) [Max]
Central Semiconductor Corp CBR1-D060 PBFREE	Through Hole	1 A	4-DIP	4-EDIP (0.300" 7.62mm)	150 °C	-65 °C	Standard	1.1 V	10 µA	Single Phase	600 V
Central Semiconductor Corp CBR1-D060S TR13 PBFREE	Surface Mount	1 A	4-SMDIP	4-SMD Gull Wing	150 °C	-65 °C	Standard	1.1 V	10 µA	Single Phase	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole 4-DIP
