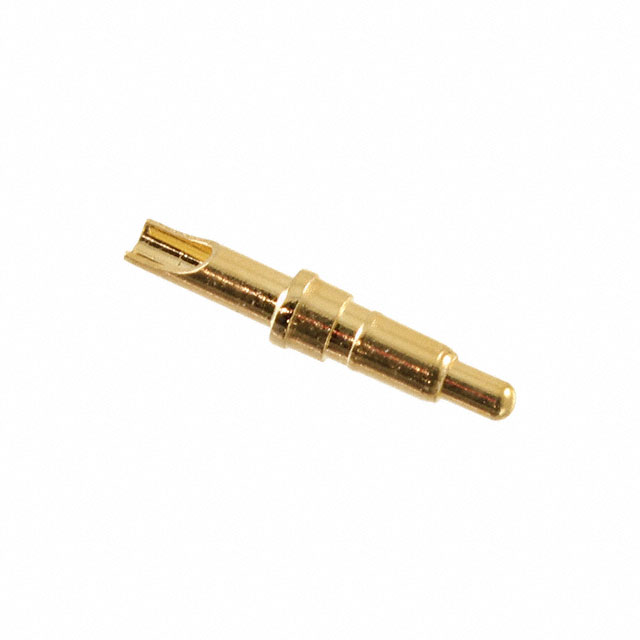

PH-MVS-5370
ActiveAdam Tech
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PH-MVS-5370
ActiveAdam Tech
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH-MVS-5370 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 7 mm |
| Maximum Working Height [Max] | 0.276 in |
| Minimum Working Height [Min] | 0.22 in |
| Minimum Working Height [Min] | 5.6 mm |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Initial | 70 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension | Circular |
| Pad Layout Dimension [diameter] | 0.079 in |
| Pad Layout Dimension [diameter] | 2 mm |
| Plunger Size [diameter] | 1 mm |
| Plunger Size [diameter] | 0.039 in |
| Recommended Working Height | 6 mm |
| Recommended Working Height | 0.236 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 2.38 | |
| 10 | $ 1.82 | |||
| 25 | $ 1.64 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.27 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.10 | |||
| 2500 | $ 1.00 | |||
Description
General part information
PH-MVS-53 Series
Contact Spring Through Hole, Solder Cup
