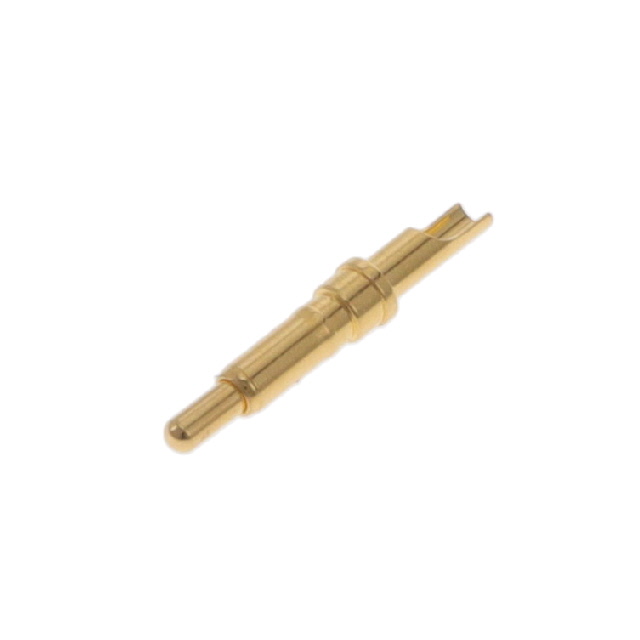

PH-MVS-5375

Active

Adam Tech

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

Adam Tech

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	PH-MVS-5375

Contact Finish	Gold
Contact Material	Brass
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	1000000
Maximum Working Height [Max]	7.49 mm
Maximum Working Height [Max]	0.295 in
Minimum Working Height [Min]	6.1 mm
Minimum Working Height [Min]	0.24 in
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	70 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension	Circular
Pad Layout Dimension [diameter]	0.079 in
Pad Layout Dimension [diameter]	2 mm
Plunger Size [diameter]	1 mm
Plunger Size [diameter]	0.039 in
Recommended Working Height	6.5 mm
Recommended Working Height	0.256 in

Part	Recommended Working Height	Recommended Working Height	Contact Material	Pad Layout Dimension [diameter]	Pad Layout Dimension	Pad Layout Dimension [diameter]	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Plunger Size [diameter]	Plunger Size [diameter]	Contact Type	Minimum Working Height [Min]	Minimum Working Height [Min]	Mating Cycles	Maximum Working Height [Max]	Maximum Working Height [Max]	Operating Force - Initial	Current Rating (Amps)
Adam Tech PH-MVS-5370	6 mm	0.236 in	Brass	0.079 in	Circular	2 mm	Gold	Solder Cup Through Hole	-55 °C	125 °C	1 mm	0.039 in	Sleeve & Plunger (Pogo Pins)	0.22 in	5.6 mm	1000000	7 mm	0.276 in	70 gf	3 A
Adam Tech PH-MVS-5375	6.5 mm	0.256 in	Brass	0.079 in	Circular	2 mm	Gold	Solder Cup Through Hole	-55 °C	125 °C	1 mm	0.039 in	Sleeve & Plunger (Pogo Pins)	0.24 in	6.1 mm	1000000	7.49 mm	0.295 in	70 gf	3 A
