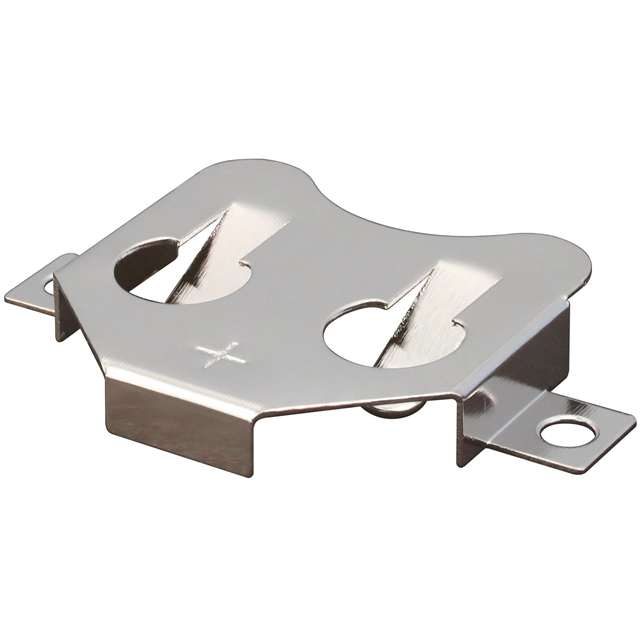

BATTERY RETAINER COIN 20MM SMD

Search across all available documentation for this part.

Active

TE Connectivity Linx

BATTERY RETAINER COIN 20MM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Cells	Battery Cell Size	Battery Cell Size	Termination Style	Battery Series	Height Above Board	Height Above Board	Style	Mounting Type	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	Battery Type, Function	Battery Series
TE Connectivity Linx BAT-HLD-001-THM	1	Coin	20 mm	PC Pin	2025 2032	0.165 "	4.2 mm	Retainer
TE Connectivity Linx BAT-HLD-003-SMT	1	Coin	20 mm	SMD (SMT) Tab	2016 2020 2025 2032	0.154 in	3.9 mm	Retainer	PCB Surface Mount
TE Connectivity Linx BAT-HLD-002-THM	1	Coin	20 mm	PC Pin	2016			Retainer		0.11 "	2.8 mm
TE Connectivity Linx BAT-HLD-009-SMT-TR		AA		SMD (SMT) Tab		0.25 in	6.35 mm		PCB Surface Mount			-25 °C	85 °C	Contact (Single) Cylindrical
TE Connectivity Linx BAT-HLD-005-THM	1	Coin	20 mm	PC Pin	2016 2020 2025 2032			Retainer
TE Connectivity Linx BAT-HLD-011-THM	1	Coin	16 mm	PC Pin	F3 iButton®	0.15 "	3.81 mm	Holder (Open)				-25 °C	85 °C	Coin Cell Holder	1620 1632
TE Connectivity Linx BAT-HLD-012-SMT	1	Coin	12 mm	SMD (SMT) Tab	1216 1225	0.14 in	3.55 mm	Retainer	PCB Surface Mount
TE Connectivity Linx BAT-HLD-006-SMT	1	Coin	24.5 mm	SMD (SMT) Tab				Retainer	PCB Surface Mount	0.271 in	6.88 mm				2450
TE Connectivity Linx BAT-HLD-012-SMT-TR	1	Coin	12 mm	SMD (SMT) Tab	1216 1225	0.14 in	3.55 mm	Retainer	PCB Surface Mount
TE Connectivity Linx BAT-HLD-012-THM	1	Coin	12 mm	PC Pin	1216 1225	0.14 in	3.55 mm	Retainer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Retainer Coin, 20.0mm 1 Cell SMD (SMT) Tab
