T0054461199N

Active

Apex Tool Group

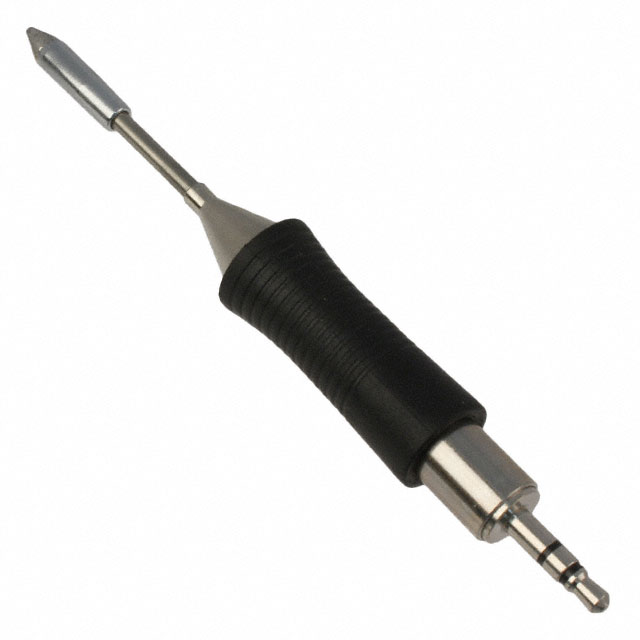

TIP RT11 CHISEL CARTRIDGE - WMRP

Search across all available documentation for this part.

Active

Apex Tool Group

TIP RT11 CHISEL CARTRIDGE - WMRP

Technical Specifications

Parameters and characteristics for this part

Specification	T0054461199N

For Use With/Related Products	WXMP, WMRP-MS, WXMP-MS, WMRP
Height [z]	0.035 in
Height [z]	0.9 mm
Length	0.748 in
Length	19 mm
Tip Shape	Chisel
Tip Type	Soldering
Width	3.6 mm
Width	0.142 in

Part	Diameter [diameter]	Diameter [diameter]	Tip Shape	For Use With/Related Products	Tip Type	Height [z]	Height [z]	Width	Width	Length	Length	Length [x]	Length [x]	Width [x]	Width [x]
Apex Tool Group T0054461999N	0.031 in	0.8 mm	Chisel 30°	WMRP WMRP-MS	Soldering	0.016 in	0.4 mm
Apex Tool Group T0054461899N	0.059 "	1.5 mm	Chisel	WMRP WMRP-MS	Soldering	0.016 in	0.4 mm
Apex Tool Group T0054461499N	0.008 in	0.2 mm	Conical	WMRP WMRP-MS WXMP WXMP-MS	Soldering
Apex Tool Group T0054461199N			Chisel	WMRP WMRP-MS WXMP WXMP-MS	Soldering	0.035 in	0.9 mm	3.6 mm	0.142 in	0.748 in	19 mm
Apex Tool Group T0054461699N			Chisel		Soldering							0.787 "	20 mm	0.051 in	1.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TIP RT11 CHISEL CARTRIDGE - WMRP
