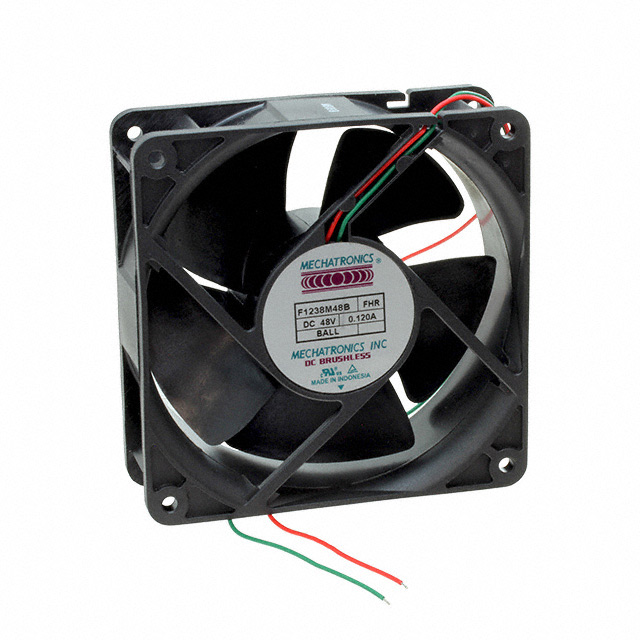

F1238E48B-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

F1238E48B-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 48VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F1238E48B-FHR

Air Flow	3.39 mł/min
Air Flow	121 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.21 A
Fan Type	Tubeaxial
Features	Auto Restart
Noise	44 dB
RPM	3300 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.33 in H2O
Static Pressure	82.2 Pa
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Weight	44 g
Weight	0.097 lb
Width [y]	38 mm

F1238 Series

Part	Air Flow	Air Flow	RPM	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Bearing Type	Features	Static Pressure	Static Pressure	Voltage - Rated [custom]	Fan Type	Weight	Weight	Width [y]	Approval Agency	Termination	Noise	Voltage - Rated	Air Flow	Material - Blade
Mechatronics Bearing Group F1238E48B-FHR	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.21 A	Ball	Auto Restart	0.33 in H2O	82.2 Pa	48 VDC	Tubeaxial	44 g	0.097 lb	38 mm	CE cUL TUV UL	2 Wire Leads	44 dB
Mechatronics Bearing Group F1238E12B2-FHR-TTL	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.7 A	Ball	Auto Restart Locked Rotor Sensor Speed Sensor (Tach)	0.33 in H2O	82.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	4 Wire Leads	44 dB	12 VDC
Mechatronics Bearing Group F1238X24B-FHR	3.64 m³/min	130 CFM	3600 RPM	119 mm	119 mm	0.5 A	Ball	Auto Restart	0.37 in H2O	92.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	47 dB	24 VDC
Mechatronics Bearing Group F1238H12BT-FHR	112 CFM		3000 RPM	119 mm	119 mm	0.44 A	Ball	Auto Restart	0.28 in H2O	69.7 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Terminals	41 dB	12 VDC	3.14 m³/min
Mechatronics Bearing Group F1238M48BT-FSR	2.94 m³/min	105 CFM	2300 RPM	119 mm	119 mm	120 mA	Ball	Auto Restart Locked Rotor Protection	0.21 in H2O	52.3 Pa	48 VDC	Tubeaxial			38 mm	CE cUL TUV UL	2 Terminals	38 dB(A)
Mechatronics Bearing Group F1238E24B-FHR	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.35 A	Ball	Auto Restart	0.33 in H2O	82.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	44 dB	24 VDC
Mechatronics Bearing Group F1238S12B1-FSR	2.32 m³/min	83 CFM	1800 RPM	119 mm	119 mm	0.18 A	Ball	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	0.14 in H2O	34.9 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	34 dB(A)	12 VDC
Mechatronics Bearing Group F1238H24B2-FS-L16	112 CFM		3000 RPM	119 mm	119 mm	0.22 A	Ball	Auto Restart Locked Rotor Sensor	0.28 in H2O	69.7 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	41 dB	24 VDC	3.14 m³/min	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group F1238X24B2-FSR	3.92 mł/min	140 CFM	3100 RPM	119 mm	119 mm	0.5 A	Ball	Auto Restart Locked Rotor Sensor	0.3 in H2O	74.7 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	45 dB(A)	24 VDC
Mechatronics Bearing Group F1238X12B-FHR	3.64 m³/min	130 CFM	3600 RPM	119 mm	119 mm	0.95 A	Ball	Auto Restart	0.37 in H2O	92.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	47 dB	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.15

Description

General part information

F1238 Series

Fan Tubeaxial 48VDC Square - 119mm L x 119mm H Ball 121.0 CFM (3.39m³/min) 2 Wire Leads

F1238E48B-FHR
