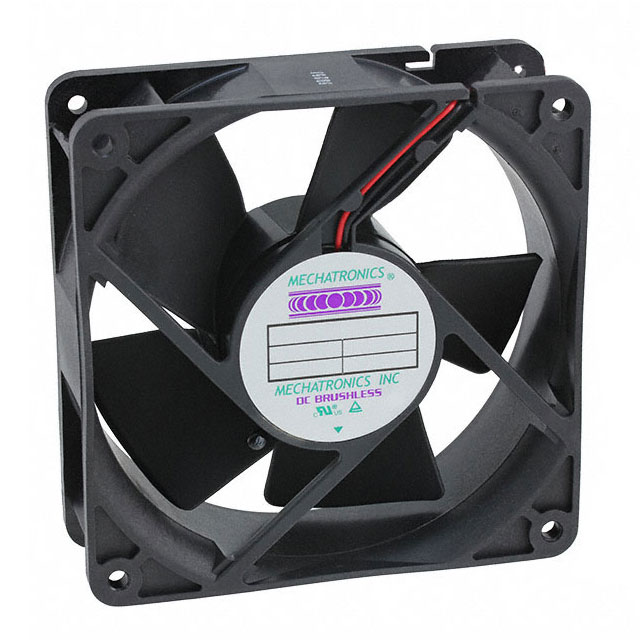

F1238S12B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +1

F1238S12B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 119X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F1238S12B1-FSR

Air Flow	83 CFM
Air Flow	2.32 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection, Auto Restart
Noise	34 dB(A)
RPM	1800 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Static Pressure	0.14 in H2O
Static Pressure	34.9 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	38 mm

F1238 Series

Part	Air Flow	Air Flow	RPM	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Bearing Type	Features	Static Pressure	Static Pressure	Voltage - Rated [custom]	Fan Type	Weight	Weight	Width [y]	Approval Agency	Termination	Noise	Voltage - Rated	Air Flow	Material - Blade
Mechatronics Bearing Group F1238E48B-FHR	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.21 A	Ball	Auto Restart	0.33 in H2O	82.2 Pa	48 VDC	Tubeaxial	44 g	0.097 lb	38 mm	CE cUL TUV UL	2 Wire Leads	44 dB
Mechatronics Bearing Group F1238E12B2-FHR-TTL	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.7 A	Ball	Auto Restart Locked Rotor Sensor Speed Sensor (Tach)	0.33 in H2O	82.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	4 Wire Leads	44 dB	12 VDC
Mechatronics Bearing Group F1238X24B-FHR	3.64 m³/min	130 CFM	3600 RPM	119 mm	119 mm	0.5 A	Ball	Auto Restart	0.37 in H2O	92.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	47 dB	24 VDC
Mechatronics Bearing Group F1238H12BT-FHR	112 CFM		3000 RPM	119 mm	119 mm	0.44 A	Ball	Auto Restart	0.28 in H2O	69.7 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Terminals	41 dB	12 VDC	3.14 m³/min
Mechatronics Bearing Group F1238M48BT-FSR	2.94 m³/min	105 CFM	2300 RPM	119 mm	119 mm	120 mA	Ball	Auto Restart Locked Rotor Protection	0.21 in H2O	52.3 Pa	48 VDC	Tubeaxial			38 mm	CE cUL TUV UL	2 Terminals	38 dB(A)
Mechatronics Bearing Group F1238E24B-FHR	3.39 mł/min	121 CFM	3300 RPM	119 mm	119 mm	0.35 A	Ball	Auto Restart	0.33 in H2O	82.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	44 dB	24 VDC
Mechatronics Bearing Group F1238S12B1-FSR	2.32 m³/min	83 CFM	1800 RPM	119 mm	119 mm	0.18 A	Ball	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	0.14 in H2O	34.9 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	34 dB(A)	12 VDC
Mechatronics Bearing Group F1238H24B2-FS-L16	112 CFM		3000 RPM	119 mm	119 mm	0.22 A	Ball	Auto Restart Locked Rotor Sensor	0.28 in H2O	69.7 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	41 dB	24 VDC	3.14 m³/min	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group F1238X24B2-FSR	3.92 mł/min	140 CFM	3100 RPM	119 mm	119 mm	0.5 A	Ball	Auto Restart Locked Rotor Sensor	0.3 in H2O	74.7 Pa		Tubeaxial			38 mm	CE cUL TUV UL	3 Wire Leads	45 dB(A)	24 VDC
Mechatronics Bearing Group F1238X12B-FHR	3.64 m³/min	130 CFM	3600 RPM	119 mm	119 mm	0.95 A	Ball	Auto Restart	0.37 in H2O	92.2 Pa		Tubeaxial	267.62 g	0.59 lb	38 mm	CE cUL TUV UL	2 Wire Leads	47 dB	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 15.87

Description

General part information

F1238 Series

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 83.0 CFM (2.32m³/min) 3 Wire Leads
