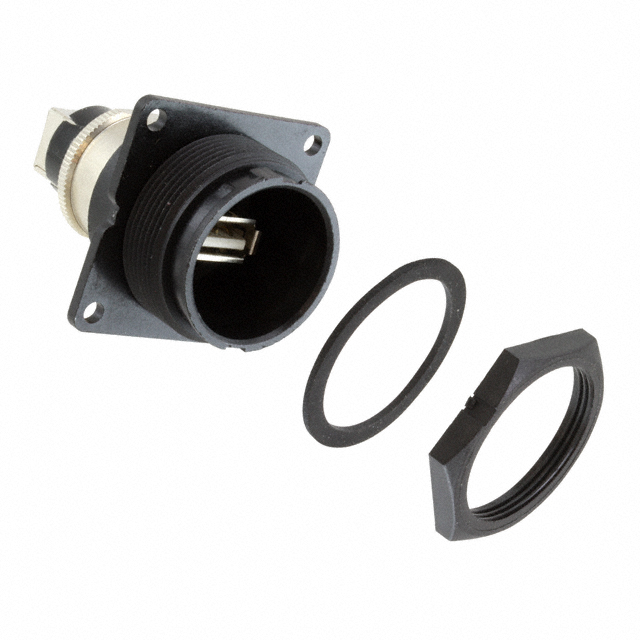

DCP-USBAB-USBB

Active

Conxall/Switchcraft

ADAPTER USB A RCPT TO USB B RCPT

Search across all available documentation for this part.

Active

Conxall/Switchcraft

ADAPTER USB A RCPT TO USB B RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	DCP-USBAB-USBB

Convert From (Adapter End)	USB-A (USB TYPE-A), Receptacle
Convert To (Adapter End)	USB-B (USB TYPE-B), Receptacle
Mounting Type	Panel Mount, Bulkhead - Front Side Nut

Part	Mounting Type	Convert To (Adapter End)	Convert From (Adapter End)	Specifications	Mounting Feature	Connector Type	Shell/Shielding Material	Material Flammability Rating	Termination	Insulation Color	Ingress Protection	Gender	Features	Number of Ports	Number of Contacts [custom]	Contact Finish	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]
Conxall/Switchcraft DCP-USBAT-USBB	Panel Mount Bulkhead - Front Side Nut	Receptacle USB-B (USB TYPE-B)	USB-A (USB TYPE-A) Receptacle
Conxall/Switchcraft DCP-USBAT-SC				USB 2.0	Bulkhead - Front Side Nut	USB-A (USB TYPE-A)	Copper Alloy	UL94 V-0	PCB	White	IP67/IP68 - Dust Tight Waterproof	Receptacle	Circular Threaded Coupling	1	4	Gold	1.5 A
Conxall/Switchcraft DCP-USBAB-USBB	Panel Mount Bulkhead - Front Side Nut	Receptacle USB-B (USB TYPE-B)	USB-A (USB TYPE-A) Receptacle
Conxall/Switchcraft DCP-USBAB-F	Bulkhead Panel Mount	Receptacle USB-A (USB TYPE-A)	USB-A (USB TYPE-A) Receptacle
Conxall/Switchcraft DCP-USBAB-SC				USB 2.0	Bulkhead - Front Side Nut	USB-A (USB TYPE-A)	Copper Alloy	UL94 V-0	PCB	White	IP67/IP68 - Dust Tight Waterproof	Receptacle	Circular Bayonet Coupling	1	4	Gold	1.5 A	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector USB-A (USB TYPE-A), Receptacle To USB-B (USB TYPE-B), Receptacle Panel Mount, Bulkhead - Front Side Nut

Technical documentation and resources

No documents available
