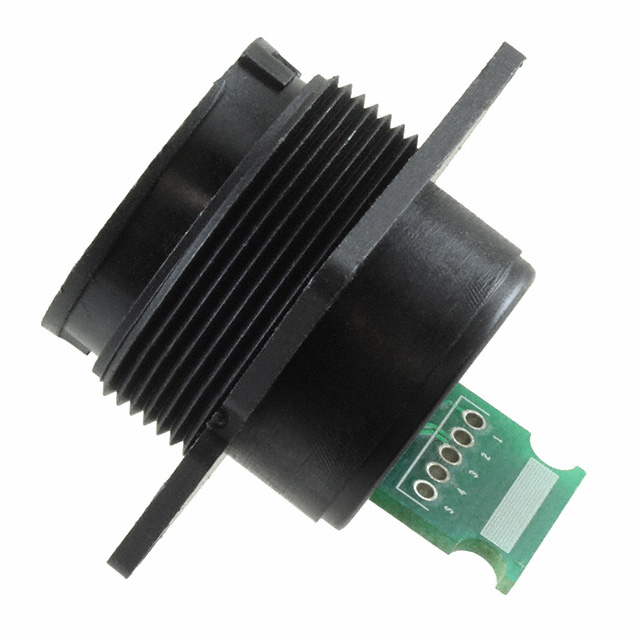

DCP-USBAB-SC
ActiveConxall/Switchcraft
CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DCP-USBAB-SC
ActiveConxall/Switchcraft
CONN RCP USB2.0 TYPEA 4P PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCP-USBAB-SC |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Circular Bayonet Coupling |
| Gender | Receptacle |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Copper Alloy |
| Specifications | USB 2.0 |
| Termination | PCB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.22 | |
| 10 | $ 17.70 | |||
| 25 | $ 16.94 | |||
| 50 | $ 16.39 | |||
| 100 | $ 15.85 | |||
| 250 | $ 14.97 | |||
| 500 | $ 14.53 | |||
Description
General part information
DCP-USBA Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount
