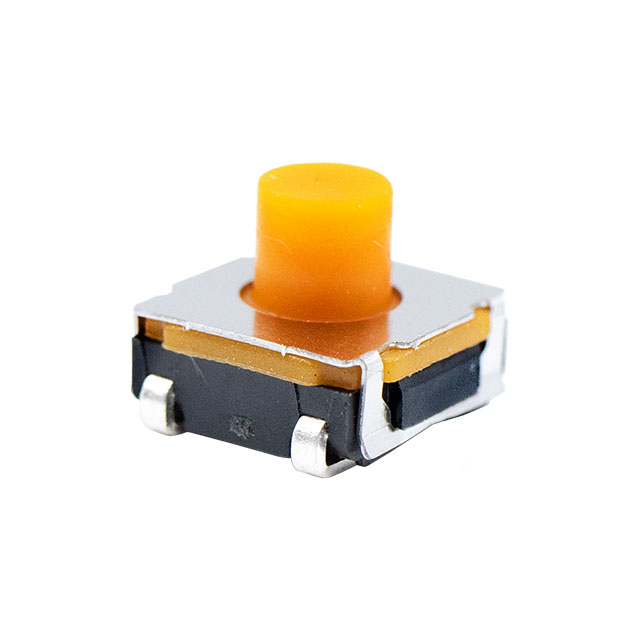

TL3145BF350QJ

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; 3.43N; 5.2MM

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; 3.43N; 5.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	TL3145BF350QJ

Actuator Height off PCB, Vertical	5.2 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	3000000 Cycles
Mounting Type	Surface Mount
Operating Force	350 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.45 mm
Outline [y]	6.45 mm
Switch Function	Off-Mom
Switch Travel	0.15 mm
Termination Style	J Lead

Part	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style	Actuator Height off PCB, Vertical	Switch Travel	Illumination	Mounting Type	Ingress Protection	Actuator Orientation	Circuit	Mechanical Life	Outline [x]	Outline [y]	Contact Rating @ Voltage	Actuator Type	Operating Force
E-Switch TL3145AF180QJ	85 °C	-40 °C	Off-Mom	J Lead	3.5 mm	0.15 mm	Non-Illuminated	Surface Mount	IP67 - Dust Tight Waterproof	Top Actuated	SPST-NO	3000000 Cycles	6.45 mm	6.45 mm	0.05 A 12 VDC	Standard	180 gf
E-Switch TL3145BF350QJ	85 °C	-40 °C	Off-Mom	J Lead	5.2 mm	0.15 mm	Non-Illuminated	Surface Mount	IP67 - Dust Tight Waterproof	Top Actuated	SPST-NO	3000000 Cycles	6.45 mm	6.45 mm	0.05 A 12 VDC	Standard	350 gf
E-Switch TL3145AF350QJ	85 °C	-40 °C	Off-Mom	J Lead	3.5 mm	0.15 mm	Non-Illuminated	Surface Mount	IP67 - Dust Tight Waterproof	Top Actuated	SPST-NO	3000000 Cycles	6.45 mm	6.45 mm	0.05 A 12 VDC	Standard	350 gf
E-Switch TL3145AF260QJ	85 °C	-40 °C	Off-Mom	J Lead	3.5 mm	0.15 mm	Non-Illuminated	Surface Mount	IP67 - Dust Tight Waterproof	Top Actuated	SPST-NO	3000000 Cycles	6.45 mm	6.45 mm	0.05 A 12 VDC	Standard	260 gf
E-Switch TL3145BF180QJ	85 °C	-40 °C	Off-Mom	J Lead	5.2 mm	0.15 mm	Non-Illuminated	Surface Mount	IP67 - Dust Tight Waterproof	Top Actuated	SPST-NO	3000000 Cycles	6.45 mm	6.45 mm	0.05 A 12 VDC	Standard	180 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
