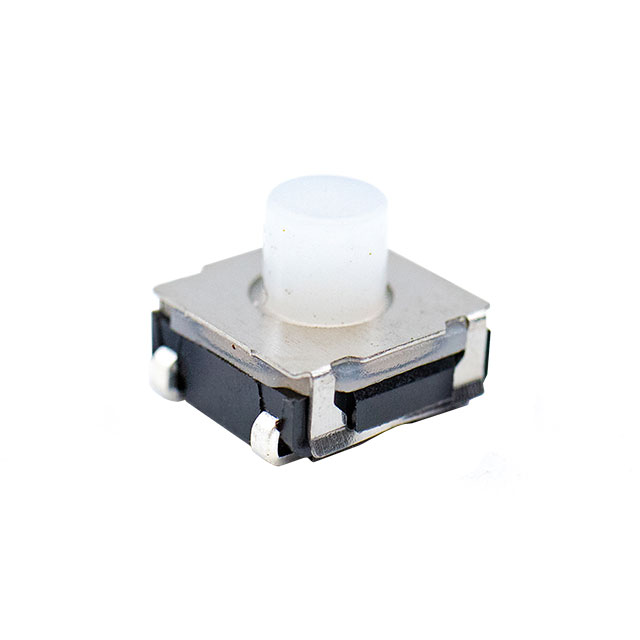

TL3145BF180QJ
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3145BF180QJ
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3145BF180QJ |
|---|---|
| Actuator Height off PCB, Vertical | 5.2 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 3000000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 180 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6.45 mm |
| Outline [y] | 6.45 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.15 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.28 | |||
| Tape & Reel (TR) | 1000 | $ 0.26 | ||
| 2000 | $ 0.24 | |||
| 3000 | $ 0.23 | |||
| 5000 | $ 0.22 | |||
| 7000 | $ 0.21 | |||
| 10000 | $ 0.21 | |||
| 25000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
TL3145 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
Documents
Technical documentation and resources
No documents available
