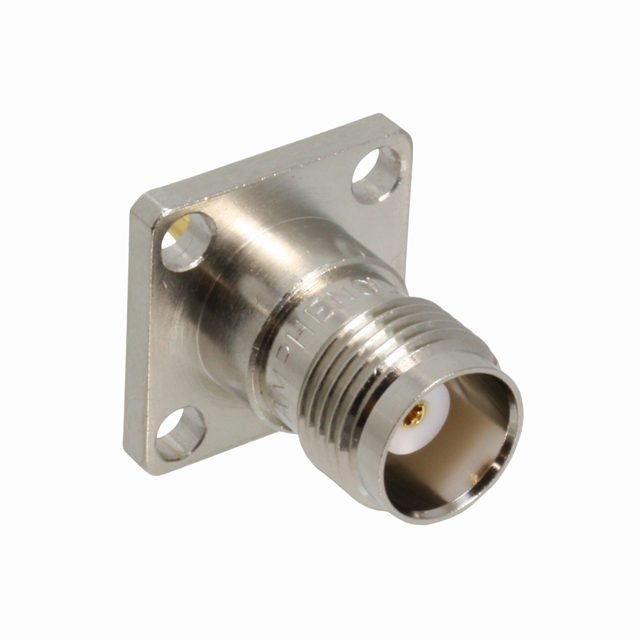

031-2300-RFX

Amphenol RF

CONN TNC RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

031-2300-RFX

Amphenol RF

CONN TNC RCPT STR 50 OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-2300-RFX

Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Connector Style	TNC
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

031-23 Series

Part	Number of Ports	Frequency - Max [Max]	Features	Mounting Feature	Shield Termination	Dielectric Material	Housing Color	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Impedance	Mating Cycles	Includes	Center Contact Plating	Contact Termination	Connector Style	Center Contact Material	Voltage Rating	Body Finish	Insertion Loss	Fastening Type	Mounting Type	Cable Group	Cable Group
Amphenol RF 031-2301	1	11 GHz	Extended Insulation	Bulkhead - Rear Side Nut	Solder	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Female Socket Receptacle	50 Ohms	500	1 Connector 1 Lockwasher 1 Nut	Gold	Solder Cup	TNC	Beryllium Copper	500 V	Nickel
Amphenol RF 031-239	1	4 GHz	Extended Insulation	Bulkhead - Rear Side Nut	Solder	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Female Socket Jack	50 Ohms	500	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Silver	Solder Cup	BNC	Beryllium Copper Brass	500 V	Nickel	0.2 dB	Bayonet Lock
Amphenol RF 031-2315-RFX	1				Crimp	Polyoxymethylene (POM) Acetal	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	500	1 Connector 1 Contact 1 Ferrule 1 Sleeve	Gold	Crimp	TNC	Brass	500 V	Nickel			Free Hanging (In-Line)	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 031-2381-1	1	11 GHz			Crimp	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	500		Gold	Crimp	TNC	Phosphor Bronze Zinc Die Cast	500 V	Nickel			Free Hanging (In-Line) Right Angle	RG-55	142 223 400
Amphenol RF 031-2389-RFX	1	11 GHz		Bulkhead - Front Side Nut	Crimp	Polyoxymethylene (POM) Acetal	Silver	Brass	-65 ░C	165 °C	Female Socket Jack	50 Ohms	500	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Gold	Crimp	TNC	Phosphor Bronze	500 V	Nickel				141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58
Amphenol RF 031-2381	1	11 GHz			Crimp	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	500	1 Connector 1 Contact 1 Ferrule	Gold	Crimp Solder	TNC	Phosphor Bronze Zinc Die Cast	500 V	Nickel			Free Hanging (In-Line) Right Angle	RG-55	142 223 400
Amphenol RF 031-2368-RFX	1	11 GHz			Crimp	Polyoxymethylene (POM) Acetal	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	500		Gold	Crimp	TNC	Brass	500 V	Nickel			Free Hanging (In-Line)	62 RG-59
Amphenol RF 031-2318-RFX	1			Bulkhead - Front Side Nut	Crimp	Polyoxymethylene (POM) Acetal	Silver	Brass	-65 ░C	165 °C	Female Socket Jack	50 Ohms	500	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve	Gold	Crimp	TNC	Phosphor Bronze	500 V	Nickel				188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 031-2300-RFX	1	11 GHz	Extended Insulation	Flange	Solder	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Female Socket Receptacle	50 Ohms	500		Silver	Solder Cup	TNC	Phosphor Bronze	500 V
Amphenol RF 031-2367	1	11 GHz			Crimp	Polytetrafluoroethylene (PTFE)	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	500	1 Connector 1 Contact 1 Ferrule	Gold	Crimp Solder	TNC	Brass	500 V	Nickel			Free Hanging (In-Line)	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.64

Description

General part information

031-23 Series

TNC Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup

Documents

Technical documentation and resources

No documents available
