031-239
ActiveAmphenol RF

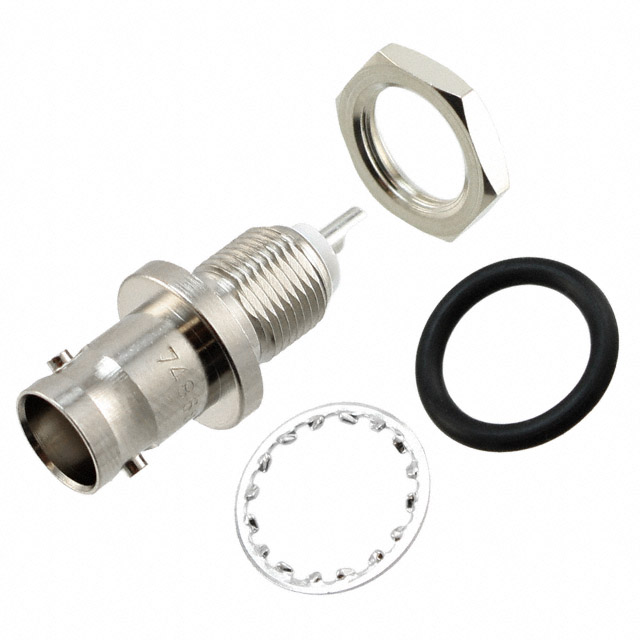

CONN BNC 0HZ TO 4GHZ 50OHM SOLDER CUP ST PANEL MOUNT RCP SILVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-239 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | Extended Insulation |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
031-23 Series
| Part | Number of Ports | Frequency - Max [Max] | Features | Mounting Feature | Shield Termination | Dielectric Material | Housing Color | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Impedance | Mating Cycles | Includes | Center Contact Plating | Contact Termination | Connector Style | Center Contact Material | Voltage Rating | Body Finish | Insertion Loss | Fastening Type | Mounting Type | Cable Group | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | 1 | 11 GHz | Extended Insulation | Bulkhead - Rear Side Nut | Solder | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Female Socket Receptacle | 50 Ohms | 500 | 1 Connector 1 Lockwasher 1 Nut | Gold | Solder Cup | TNC | Beryllium Copper | 500 V | Nickel | |||||
Amphenol RF | 1 | 4 GHz | Extended Insulation | Bulkhead - Rear Side Nut | Solder | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Female Socket Jack | 50 Ohms | 500 | 1 Connector 1 Gasket 1 Lockwasher 1 Nut | Silver | Solder Cup | BNC | Beryllium Copper Brass | 500 V | Nickel | 0.2 dB | Bayonet Lock | |||
Amphenol RF | 1 | Crimp | Polyoxymethylene (POM) Acetal | Silver | Brass | -65 ░C | 165 °C | Male Pin Plug | 50 Ohms | 500 | 1 Connector 1 Contact 1 Ferrule 1 Sleeve | Gold | Crimp | TNC | Brass | 500 V | Nickel | Free Hanging (In-Line) | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||
Amphenol RF | 1 | 11 GHz | Crimp | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Male Pin Plug | 50 Ohms | 500 | Gold | Crimp | TNC | Phosphor Bronze Zinc Die Cast | 500 V | Nickel | Free Hanging (In-Line) Right Angle | RG-55 | 142 223 400 | |||||
Amphenol RF | 1 | 11 GHz | Bulkhead - Front Side Nut | Crimp | Polyoxymethylene (POM) Acetal | Silver | Brass | -65 ░C | 165 °C | Female Socket Jack | 50 Ohms | 500 | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut | Gold | Crimp | TNC | Phosphor Bronze | 500 V | Nickel | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | |||||
Amphenol RF | 1 | 11 GHz | Crimp | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Male Pin Plug | 50 Ohms | 500 | 1 Connector 1 Contact 1 Ferrule | Gold | Crimp Solder | TNC | Phosphor Bronze Zinc Die Cast | 500 V | Nickel | Free Hanging (In-Line) Right Angle | RG-55 | 142 223 400 | ||||
Amphenol RF | 1 | 11 GHz | Crimp | Polyoxymethylene (POM) Acetal | Silver | Brass | -65 ░C | 165 °C | Male Pin Plug | 50 Ohms | 500 | Gold | Crimp | TNC | Brass | 500 V | Nickel | Free Hanging (In-Line) | 62 RG-59 | ||||||
Amphenol RF | 1 | Bulkhead - Front Side Nut | Crimp | Polyoxymethylene (POM) Acetal | Silver | Brass | -65 ░C | 165 °C | Female Socket Jack | 50 Ohms | 500 | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut 1 Sleeve | Gold | Crimp | TNC | Phosphor Bronze | 500 V | Nickel | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | ||||||
Amphenol RF | 1 | 11 GHz | Extended Insulation | Flange | Solder | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Female Socket Receptacle | 50 Ohms | 500 | Silver | Solder Cup | TNC | Phosphor Bronze | 500 V | |||||||
Amphenol RF | 1 | 11 GHz | Crimp | Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 ░C | 165 °C | Male Pin Plug | 50 Ohms | 500 | 1 Connector 1 Contact 1 Ferrule | Gold | Crimp Solder | TNC | Brass | 500 V | Nickel | Free Hanging (In-Line) | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.12 | |
| 10 | $ 13.94 | |||
| 25 | $ 12.61 | |||
| 50 | $ 11.71 | |||
| 100 | $ 10.89 | |||
| 250 | $ 9.93 | |||
| 500 | $ 9.28 | |||
| 1000 | $ 8.70 | |||
Description
General part information
031-23 Series
BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
