M80-8760522
ActiveHarwin Inc.

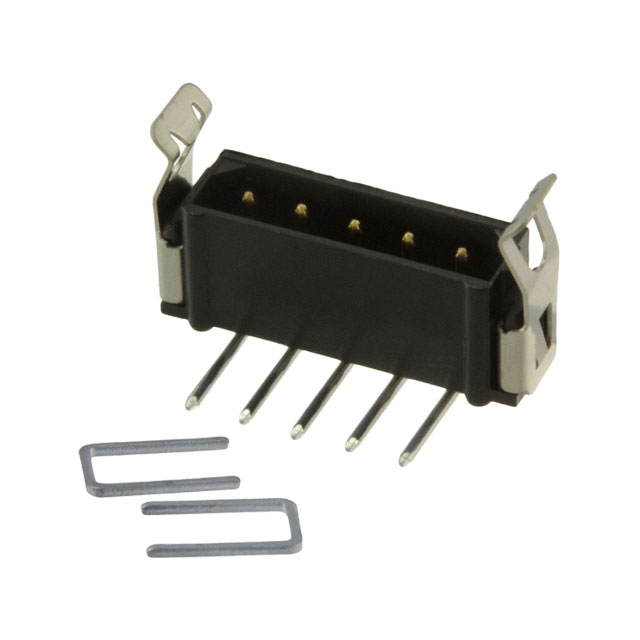

HEADER CONNECTOR,PCB MNT,RECEPT,5 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,LATCH ROHS COMPLIANT: NO
Deep-Dive with AI
Search across all available documentation for this part.
M80-8760522
ActiveHarwin Inc.
HEADER CONNECTOR,PCB MNT,RECEPT,5 CONTACTS,PIN,0.079 PITCH,R ANGLE PC TAIL TERMINAL,LATCH ROHS COMPLIANT: NO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8760522 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Lock |
| Features | Strain Relief Clips |
| Insulation Color | Black |
| Insulation Height | 0.156 in |
| Insulation Height | 3.96 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-876 Series
| Part | Number of Positions Loaded | Number of Rows | Connector Type | Contact Material | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape | Mounting Type | Fastening Type | Features | Contact Length - Post | Contact Length - Post | Contact Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Color | Insulation Material | Shrouding | Contact Finish - Post | Contact Finish - Mating | Style | Insulation Height | Insulation Height | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | All | 1 | Header | Phosphor Bronze | Solder | 0.079 in | 2 mm | 4 | 3 µm | 118.1 µin | Circular | Through Hole Right Angle | Latch Lock | Strain Relief Clips | 0.118 in | 3 mm | Male Pin | 2.2 A | -55 °C | 125 °C | 120 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Tin-Lead | Gold | Board to Board Cable | 0.156 in | 3.96 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám |
Harwin Inc. | All | 1 | Header | Phosphor Bronze | Solder | 0.079 in | 2 mm | 7 | 3 µm | 118.1 µin | Circular | Through Hole Right Angle | Latch Lock | Strain Relief Clips | 0.118 in | 3 mm | Male Pin | 2.2 A | -55 °C | 125 °C | 120 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Tin-Lead | Gold | Board to Board Cable | 0.156 in | 3.96 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám |
Harwin Inc. | All | 1 | Header | Phosphor Bronze | Solder | 0.079 in | 2 mm | 3 µm | 118.1 µin | Circular | Through Hole Right Angle | Latch Lock | Strain Relief Clips | 0.118 in | 3 mm | Male Pin | 2.2 A | -55 °C | 125 °C | 120 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Tin-Lead | Gold | Board to Board Cable | 0.156 in | 3.96 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám | |
Harwin Inc. | All | 1 | Header | Phosphor Bronze | Solder | 0.079 in | 2 mm | 2 | 3 µm | 118.1 µin | Circular | Through Hole Right Angle | Latch Lock | Strain Relief Clips | 0.118 in | 3 mm | Male Pin | 2.2 A | -55 °C | 125 °C | 120 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Tin-Lead | Gold | Board to Board Cable | 0.156 in | 3.96 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám |
Harwin Inc. | All | 1 | Header | Phosphor Bronze | Solder | 0.079 in | 2 mm | 3 µm | 118.1 µin | Circular | Through Hole Right Angle | Latch Lock | Strain Relief Clips | 0.118 in | 3 mm | Male Pin | 2.2 A | -55 °C | 125 °C | 120 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | Shrouded - 4 Wall | Tin-Lead | Gold | Board to Board Cable | 0.156 in | 3.96 mm | UL94 V-0 | 29.5 Áin | 0.75 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-876 Series
Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
