M80-8760422 - M80-8760422

M80-8760422

Active
Harwin Inc.

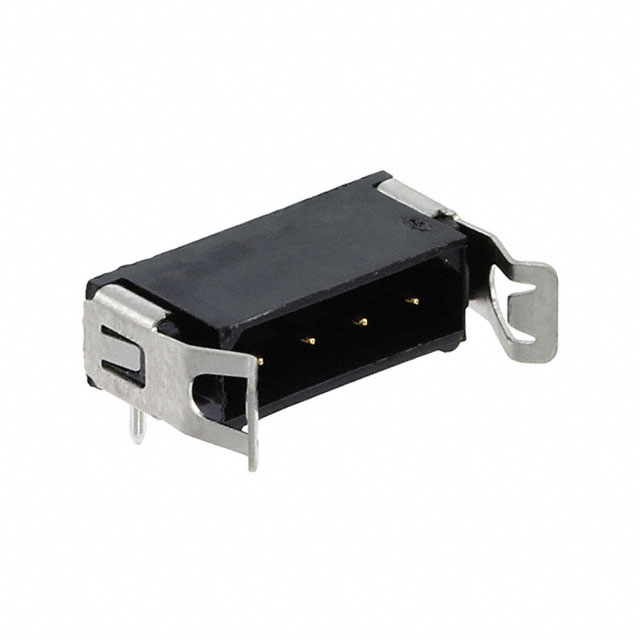

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LATCH, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetM80-0110001+5
M80-8760422 - M80-8760422

M80-8760422

Active
Harwin Inc.

BOARD CONNECTOR, 4 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LATCH, BLACK INSULATOR, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheetM80-0110001+5

Technical Specifications

Parameters and characteristics for this part

SpecificationM80-8760422
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thickness - Mating29.5 Áin
Contact Finish Thickness - Mating0.75 Ám
Contact Finish Thickness - Post3 µm
Contact Finish Thickness - Post118.1 µin
Contact Length - Post0.118 in
Contact Length - Post3 mm
Contact MaterialPhosphor Bronze
Contact ShapeCircular
Contact TypeMale Pin
Current Rating (Amps)2.2 A
Fastening TypeLatch Lock
FeaturesStrain Relief Clips
Insulation ColorBlack
Insulation Height0.156 in
Insulation Height3.96 mm
Insulation MaterialPolybutylene Terephthalate (PBT), Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions4
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder
Voltage Rating120 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 5.03
10$ 3.85
100$ 2.98
500$ 2.52
1000$ 2.35
NewarkEach 100$ 3.49
250$ 3.22
500$ 2.97
1000$ 2.72
2500$ 2.46

Description

General part information

M80-876 Series

Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
