HSE-B18254-035H
ActiveCUI Devices

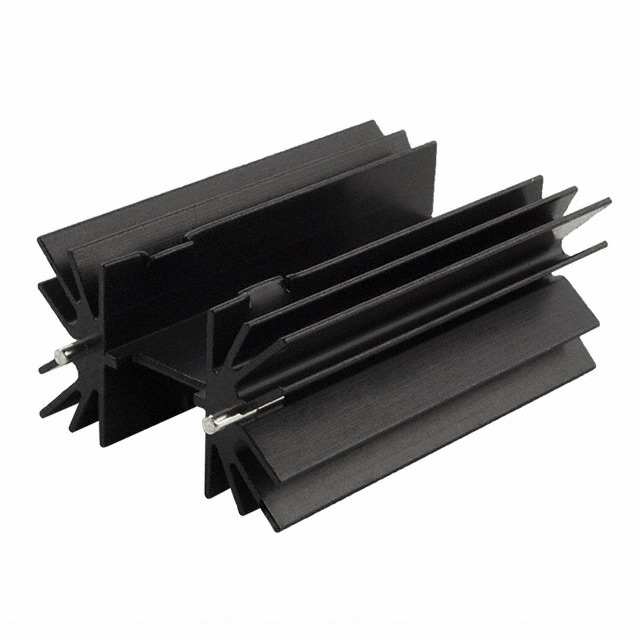

HEATSINK: EXTRUDED; H; TO218; BLACK; L: 25.4MM; W: 41.6MM; H: 25MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSE-B18254-035H
ActiveCUI Devices
HEATSINK: EXTRUDED; H; TO218; BLACK; L: 25.4MM; W: 41.6MM; H: 25MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSE-B18254-035H |
|---|---|
| Attachment Method | PC Pin, Bolt On |
| Fin Height | 0.984 in |
| Fin Height | 25 mm |
| Length [x] | 1 in |
| Length [x] | 25.4 mm |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | TO-218 |
| Power Dissipation @ Temperature Rise | 8.1 W, 75 °C |
| Shape | Rectangular, Angled Fins |
| Thermal Resistance @ Forced Air Flow | 200 LFM, 3.09 °C/W |
| Type | Board Level, Vertical |
| Width [x] | 1.638 in |
| Width [x] | 41.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.23 | |
| 10 | $ 1.17 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.99 | |||
| 750 | $ 0.92 | |||
| 1500 | $ 0.86 | |||
| 5250 | $ 0.83 | |||
Description
General part information
HSE-B18254 Series
Heat Sink TO-218 Aluminum Alloy 8.1W @ 75°C Board Level, Vertical
