Q2-F-1-01-SS200FT

Active

Qualtek

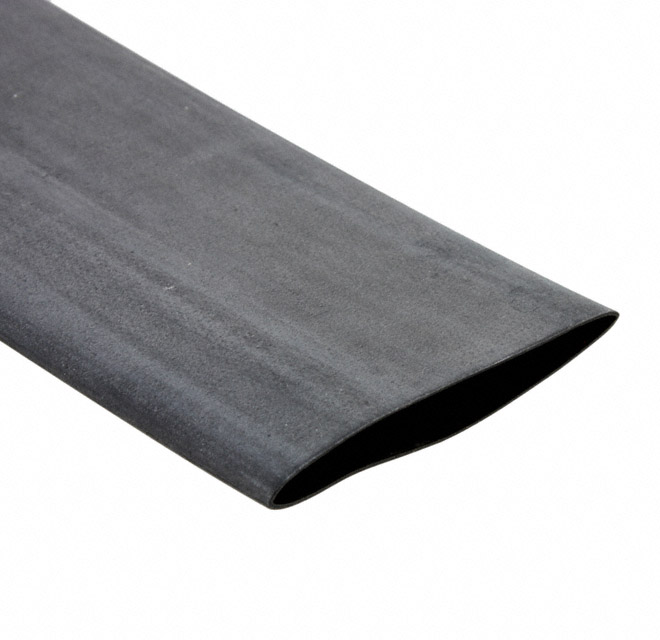

HEATSHRINK POLY Q2F 1" BLACK

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK POLY Q2F 1" BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-1-01-SS200FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length	Enter Number of Feet in Order Quantity
Length	152.4 mm, 50.8 mm, 38.1 mm, 76.2 mm
Length	6 ", 2 ", 1.5 ", 3 "
Length	0.5 '
Length	0.167 ', 0.125 ', 0.25 ft
Length [x]	61 m, 101.6 mm
Length [x]	200 ft, 0.333 ft
Length [x]	4 "
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.034 in
Recovered Wall Thickness	0.87 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	61 m
Spool Size	200 '
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Color	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Shrinkage Ratio	Length [x]	Length [x]	Length	Spool Size	Spool Size	Length	Length [x]
Qualtek Q2-F-1-01-QB6IN-8	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm	152.4 mm	6 "	0.5 '	1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1
Qualtek Q2-F-1-01-QB48IN-5	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm				1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	1.22 m	4 ft
Qualtek Q2-F-1-01-SS200FT	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm	38.1 mm 50.8 mm 76.2 mm 152.4 mm	1.5 " 2 " 3 " 6 "	0.5 '	1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	61 m 101.6 mm	0.333 ft 200 ft	Enter Number of Feet in Order Quantity	61 m	200 '	0.125 ' 0.167 ' 0.25 ft	4 "
Qualtek Q2-F-1-01-QX15FT	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm				1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	4.6 m	15 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Black 200.0' (61.0m)
