Q2-F-1-01-QB6IN-8

Active

Qualtek

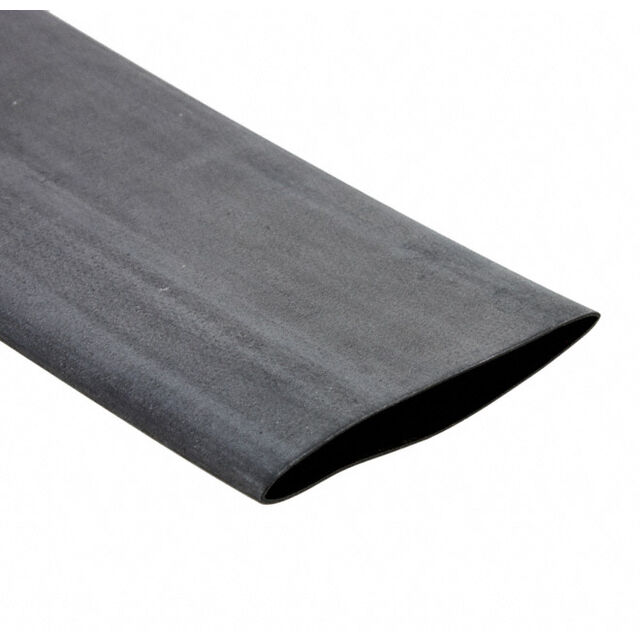

HEATSHRINK 1" X 0.5' BLACK 8PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1" X 0.5' BLACK 8PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-1-01-QB6IN-8

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length	152.4 mm
Length	6 "
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.034 in
Recovered Wall Thickness	0.87 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Color	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Recovered Wall Thickness	Recovered Wall Thickness	Shelf Life	Shrinkage Ratio	Length [x]	Length [x]	Length	Spool Size	Spool Size	Length	Length [x]
Qualtek Q2-F-1-01-QB6IN-8	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm	152.4 mm	6 "	0.5 '	1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1
Qualtek Q2-F-1-01-QB48IN-5	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm				1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	1.22 m	4 ft
Qualtek Q2-F-1-01-SS200FT	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm	38.1 mm 50.8 mm 76.2 mm 152.4 mm	1.5 " 2 " 3 " 6 "	0.5 '	1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	61 m 101.6 mm	0.333 ft 200 ft	Enter Number of Feet in Order Quantity	61 m	200 '	0.125 ' 0.167 ' 0.25 ft	4 "
Qualtek Q2-F-1-01-QX15FT	135 °C	-55 °C	Polyolefin (PO)	-50 °F -10 °C	40 °C	70 °C	Black	Tubing Flexible	0.5 in	12.7 mm				1 in	25.4 mm	Flame Retardant	0.034 in	0.87 mm	144 Months	2 to 1	4.6 m	15 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Black 0.500' (152.40mm, 6.00")
