10220-M218PE

Active

3M (TC)

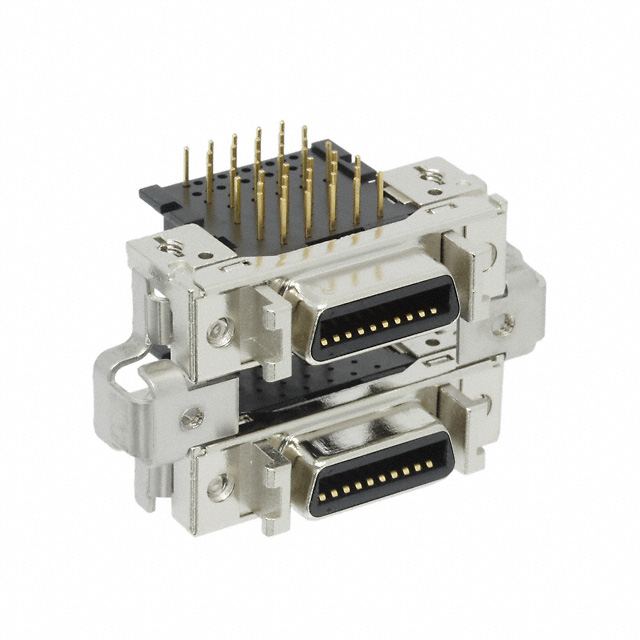

JE150347399 10220-M218PE=2X20/MDR/RC/CONDO/RECP/20GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog Datasheet +2

10220-M218PE

Active

3M (TC)

JE150347399 10220-M218PE=2X20/MDR/RC/CONDO/RECP/20GOLD

Deep-Dive with AI

DocumentsInterconnect Catalog Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10220-M218PE

Connector Style	Outer Shroud Contacts
Connector Type	Stacked
Connector Type	2 Plugs
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Features	Shielded
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	20
Number of Rows	2
Termination	Solder

10220 Series

Part	Number of Positions	Flange Feature	Flange Feature	Connector Type	Contact Finish	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Termination	Connector Type
3M (TC) 10220-6212PL	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Through Hole	2	Solder
3M (TC) 10220-55H3PC	20	Housing/Shell (4-40) Latchblocks		Receptacle	Gold	Outer Shroud Contacts	Board Lock Shielded	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	2	Solder
3M (TC) 10220-2200VE	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Surface Mount	2	Solder
3M (TC) 10220-52B2JL	20			Receptacle	Gold	Outer Shroud Contacts		0.3 Ám	11.8 Áin	Through Hole Right Angle	2	Solder
3M (TC) 10220-6212PC	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Panel Mount Through Hole	2	Solder
3M (TC) 10220-2210VE	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Surface Mount	2	Solder
3M (TC) 10220-55G3JL	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Lock Shielded	0.203 çm	8 çin	Panel Mount Right Angle Through Hole	2	Solder
3M (TC) 10220-0210EC	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	IDC
3M (TC) 10220-M218PE	20	Housing/Shell	2.6 M	Stacked	Gold	Outer Shroud Contacts	Shielded	0.51 µm	20 µin	Panel Mount Right Angle Through Hole	2	Solder	2 Plugs
3M (TC) 10220-M218VE	20	Housing/Shell	2.6 M	Stacked	Gold	Outer Shroud Contacts	Shielded	0.51 µm	20 µin	Panel Mount Right Angle Through Hole	2	Solder	2 Plugs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.14
		10	$ 18.32
		25	$ 17.37
		50	$ 17.11
		100	$ 15.10
		250	$ 14.09
		500	$ 13.79
Newark	Each	250	$ 17.22

Description

General part information

10220 Series

20, 20 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

Interconnect Catalog

Datasheet

MDR Selection Guide

MDR Series Qualification Report

Datasheet
