10220-6212PC

Active

3M (TC)

D SUB CONNECTOR, 20 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsInterconnect Catalog MDR Series Qualification Report +4

10220-6212PC

Active

3M (TC)

D SUB CONNECTOR, 20 CONTACTS, RECEPTACLE, SOLDER, MDR 102 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsInterconnect Catalog MDR Series Qualification Report +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10220-6212PC

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Panel Mount
Number of Positions	20
Number of Rows	2
Termination	Solder

10220 Series

Part	Number of Positions	Flange Feature	Flange Feature	Connector Type	Contact Finish	Connector Style	Features	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Termination	Connector Type
3M (TC) 10220-6212PL	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Through Hole	2	Solder
3M (TC) 10220-55H3PC	20	Housing/Shell (4-40) Latchblocks		Receptacle	Gold	Outer Shroud Contacts	Board Lock Shielded	0.76 Ám	30 Áin	Panel Mount Right Angle Through Hole	2	Solder
3M (TC) 10220-2200VE	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Surface Mount	2	Solder
3M (TC) 10220-52B2JL	20			Receptacle	Gold	Outer Shroud Contacts		0.3 Ám	11.8 Áin	Through Hole Right Angle	2	Solder
3M (TC) 10220-6212PC	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Panel Mount Through Hole	2	Solder
3M (TC) 10220-2210VE	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Guide Shielded	0.51 µm	20 µin	Surface Mount	2	Solder
3M (TC) 10220-55G3JL	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Board Lock Shielded	0.203 çm	8 çin	Panel Mount Right Angle Through Hole	2	Solder
3M (TC) 10220-0210EC	20	Housing/Shell	2.6 M	Receptacle	Gold	Outer Shroud Contacts	Shielded	0.76 Ám	30 Áin	Free Hanging (In-Line)	2	IDC
3M (TC) 10220-M218PE	20	Housing/Shell	2.6 M	Stacked	Gold	Outer Shroud Contacts	Shielded	0.51 µm	20 µin	Panel Mount Right Angle Through Hole	2	Solder	2 Plugs
3M (TC) 10220-M218VE	20	Housing/Shell	2.6 M	Stacked	Gold	Outer Shroud Contacts	Shielded	0.51 µm	20 µin	Panel Mount Right Angle Through Hole	2	Solder	2 Plugs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.85
		10	$ 7.09
		25	$ 6.70
		50	$ 6.54
		100	$ 6.21
		300	$ 5.56
		500	$ 5.23
		1000	$ 4.58
Newark	Each	100	$ 6.35
		250	$ 5.60
		500	$ 5.43
		1000	$ 4.61

Description

General part information

10220 Series

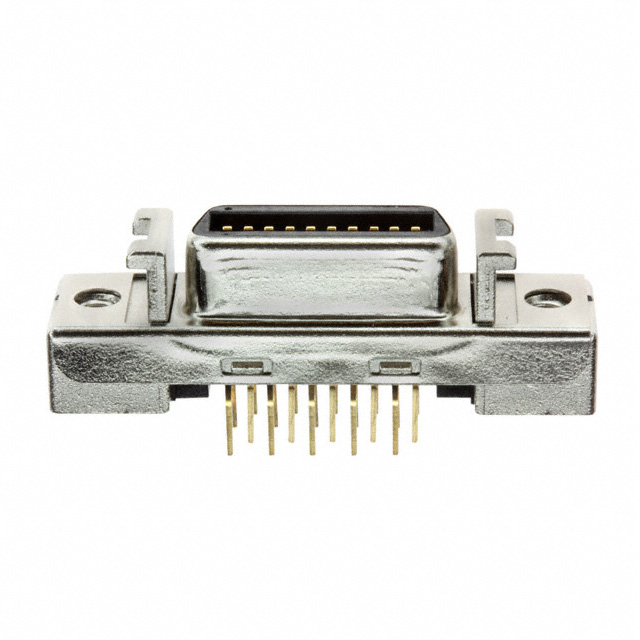

The 10220-6212PC is a 20-way 0.050-inch shielded boardmount Vertical Receptacle with gold-plated copper alloy contacts, through hole termination and PCB mounting. This 102 series connector is glass filled polyester (PBT) insulated, rugged die cast metal case construction, M2.5 (standard) lockstand thread.
