1427B2
ActiveHammond Manufacturing

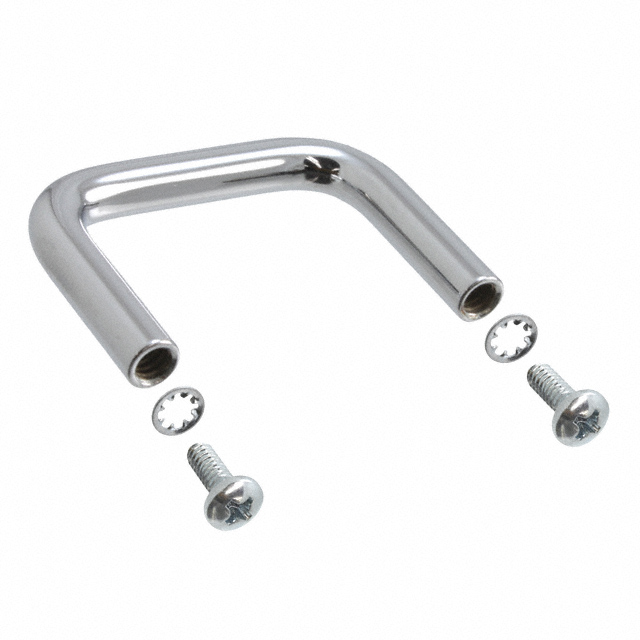

HANDLE STL/CHROME MTG CTR 1.252"
Deep-Dive with AI
Search across all available documentation for this part.
1427B2
ActiveHammond Manufacturing
HANDLE STL/CHROME MTG CTR 1.252"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1427B2 |
|---|---|
| Height [z] | 1 in |
| Height [z] | 25.4 mm |
| Length - Center to Center [x] | 1.252 in |
| Length - Center to Center [x] | 31.8 mm |
| Material | Steel, Chrome Plated |
| Mounting Type | Screw Holes, Back |
| Thread/Screw/Hole Size | #6-32 |
| Type | Instrumentation |
1427 Series
| Part | Height [z] | Height [z] | Length - Center to Center [x] | Length - Center to Center [x] | Type | Thread/Screw/Hole Size | Material | Mounting Type | For Use With/Related Products | Accessory Type | Height [diameter] | Height [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hammond Manufacturing | 1 in | 25.4 mm | 1.252 in | 31.8 mm | Instrumentation | #6-32 | Steel Black Coating | Screw Holes Back | ||||
Hammond Manufacturing | 2.7 in | 68.58 mm | 3.7 in | 93.98 mm | Hinged Ends | Polystyrene | Screw Holes Back | |||||
Hammond Manufacturing | 1427 Series | Cord Grip | ||||||||||
Hammond Manufacturing | 1 in | 25.4 mm | 1.252 in | 31.8 mm | Instrumentation | #6-32 | Steel Chrome Plated | Screw Holes Back | ||||
Hammond Manufacturing | 1.299 in | 32.99 mm | 4 in | 101.6 mm | Instrumentation | #10-32 | Steel Chrome Plated | Screw Holes Back | ||||
Hammond Manufacturing | Instrumentation | Polycarbonate | Bolt Screw | |||||||||
Hammond Manufacturing | 1.64 in | 41.66 mm | 7 in | 177.8 mm | Drawer Type | M4 | Aluminum Polyamide | Screw Holes Back | ||||
Hammond Manufacturing | 1 in | 25.4 mm | 2 in | 50.8 mm | Instrumentation | #6-32 | Steel Chrome Plated | Screw Holes Back | ||||
Hammond Manufacturing | 5.299 " | 134.59 mm | Instrumentation | #10-32 | Steel Chrome Plated | Screw Holes Back | 1.201 in | 30.51 mm | ||||
Hammond Manufacturing | 1427 Series | Cord Grip |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.08 | |
| 5 | $ 5.62 | |||
| 10 | $ 5.17 | |||
| 25 | $ 4.86 | |||
| 50 | $ 4.56 | |||
| 100 | $ 4.26 | |||
| 250 | $ 4.18 | |||
| 500 | $ 4.10 | |||
| 1000 | $ 4.04 | |||
Description
General part information
1427 Series
Instrumentation Handle Steel, Chrome Plated Screw Holes, Back
Documents
Technical documentation and resources
No documents available
