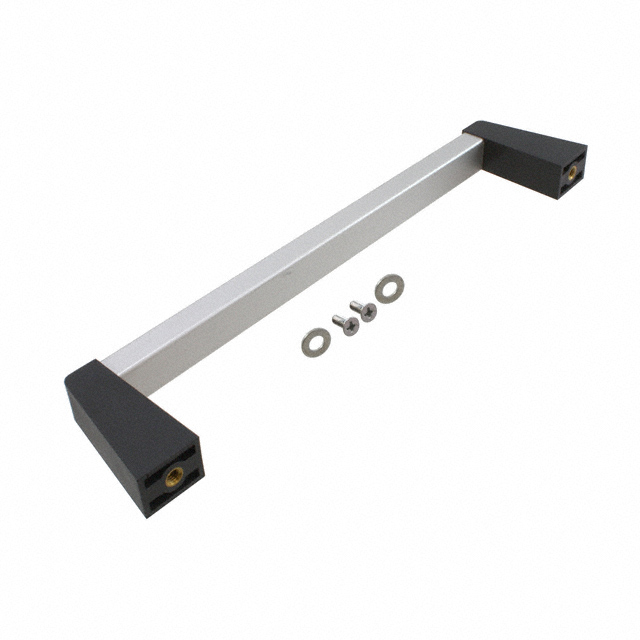

1427LBC

Active

Hammond Manufacturing

HANDLE ALUM BLACK/CLR MTG CTR 7"

Search across all available documentation for this part.

Active

Hammond Manufacturing

HANDLE ALUM BLACK/CLR MTG CTR 7"

Technical Specifications

Parameters and characteristics for this part

Part	Height [z]	Height [z]	Length - Center to Center [x]	Length - Center to Center [x]	Type	Thread/Screw/Hole Size	Material	Mounting Type	For Use With/Related Products	Accessory Type	Height [diameter]	Height [diameter]
Hammond Manufacturing 1427B2BK	1 in	25.4 mm	1.252 in	31.8 mm	Instrumentation	#6-32	Steel Black Coating	Screw Holes Back
Hammond Manufacturing 1427F1	2.7 in	68.58 mm	3.7 in	93.98 mm	Hinged Ends		Polystyrene	Screw Holes Back
Hammond Manufacturing 1427CG13									1427 Series	Cord Grip
Hammond Manufacturing 1427B2	1 in	25.4 mm	1.252 in	31.8 mm	Instrumentation	#6-32	Steel Chrome Plated	Screw Holes Back
Hammond Manufacturing 1427C1	1.299 in	32.99 mm	4 in	101.6 mm	Instrumentation	#10-32	Steel Chrome Plated	Screw Holes Back
Hammond Manufacturing 1427BAILKIT1					Instrumentation		Polycarbonate	Bolt Screw
Hammond Manufacturing 1427LBC	1.64 in	41.66 mm	7 in	177.8 mm	Drawer Type	M4	Aluminum Polyamide	Screw Holes Back
Hammond Manufacturing 1427E	1 in	25.4 mm	2 in	50.8 mm	Instrumentation	#6-32	Steel Chrome Plated	Screw Holes Back
Hammond Manufacturing 1427M			5.299 "	134.59 mm	Instrumentation	#10-32	Steel Chrome Plated	Screw Holes Back			1.201 in	30.51 mm
Hammond Manufacturing 1427CG16									1427 Series	Cord Grip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Drawer, Type Handle Aluminum, Polyamide Screw Holes, Back

Technical documentation and resources

No documents available
